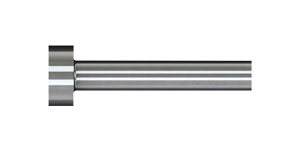

Knockout Pin
Knockout Pin for metal stamping die transfer system

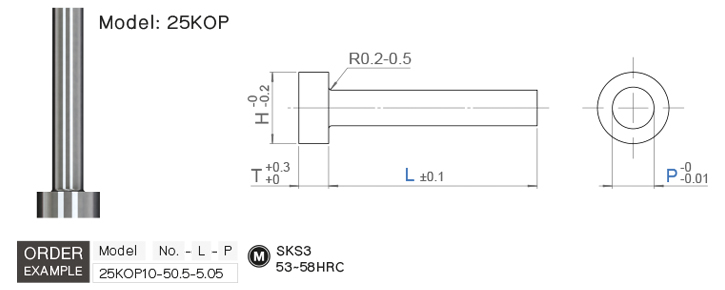

Model: 25KOP
more
- Model 25KOP
- Manufacturer Code KOP
View Online
Download
Swipe
| Model | No. | L 0.1mm. increment |
P 0.01mm. Increment |
T | H |
| 25KOP | 4 | 7.0 – 60.0 | 1.00 – 4.00 | 3 | 6 |
| 6 | 1.00 – 6.00 | 8 | |||
| 8 | 2.00 – 8.00 | 5 | 10 | ||
| 10 | 3.00 – 10.00 | 12 | |||
| 12 | 4.00 – 12.00 | 14 | |||
| 13 | 6.00 – 13.00 | 16 |
