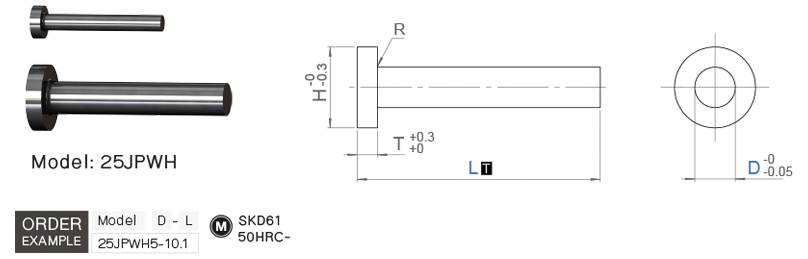

Push Pins
Push Pins for metal stamping die transfer system
Model: 25JPWH
more
- Model 25JPWH
- Manufacturer Code JPWH
View Online
Download
Swipe
| Model | D | L 0.1mm. increment |
R | T | H | |
| 25JPWH | 2 | 10.0 – 100.0 | ±0.1 | 0.5 ≤ R ≤ 1.0 | 5 | 5 |
| 3 | 8 | |||||
| 4 | 10 | |||||
| 5 | 12 | |||||
| 6 | 14 | |||||
| 8 | 16 | |||||
| 10 | 18 | |||||
Swipe
Push Pins for metal stamping die transfer system
Model: 25JPWH
| Model | D | L 0.1mm. increment |
R | T | H | |
| 25JPWH | 2 | 10.0 – 100.0 | ±0.1 | 0.5 ≤ R ≤ 1.0 | 5 | 5 |
| 3 | 8 | |||||
| 4 | 10 | |||||
| 5 | 12 | |||||
| 6 | 14 | |||||
| 8 | 16 | |||||
| 10 | 18 | |||||
