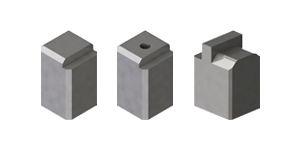

Block Lifters
Block Lifters for metal stamping die transfer system.
Choose from 2 designs : 25BLL, 25BLH, 25BLLF
Select chamfer side : Left (-L), Right (-R), Both Sides (-W)
more

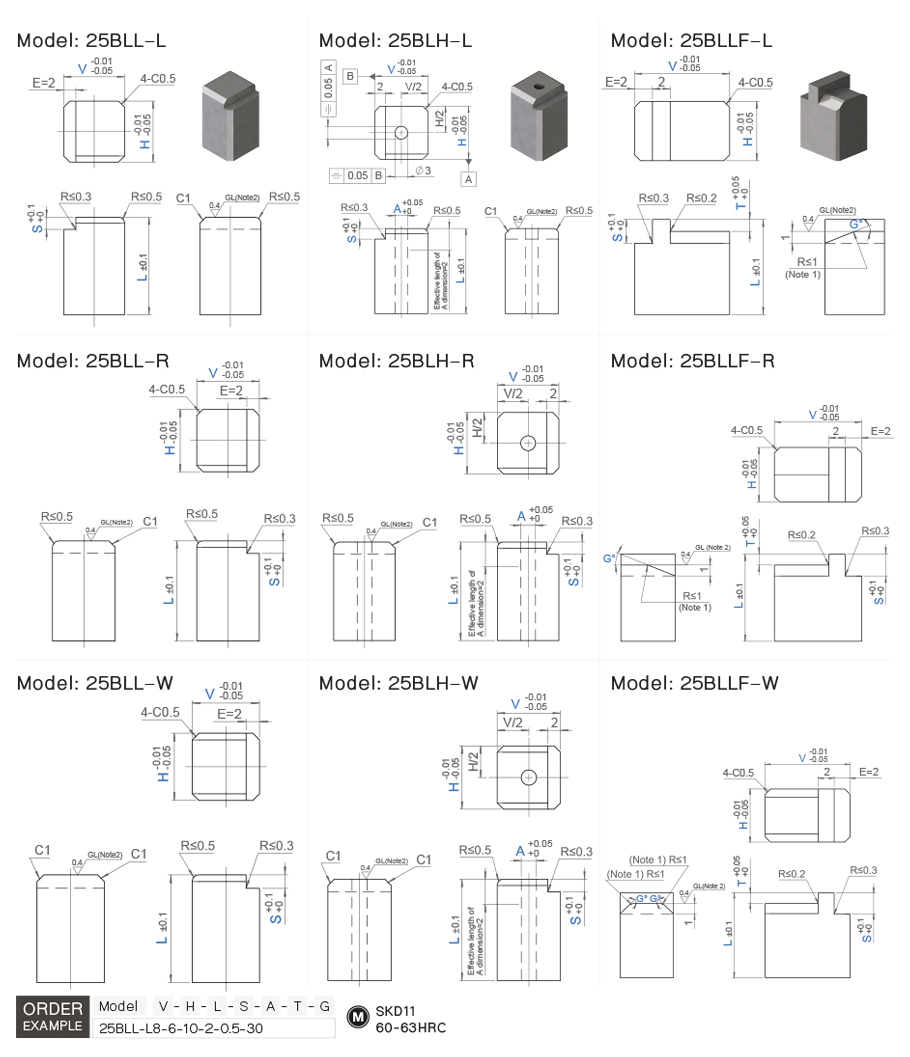

- Model 25BLL/25BLH/25BLLF
- Manufacturer Code BLL/BLH/BLLF
View Online
Download
Swipe
| Model | V | H | L | S | T 0.1mm. increment |
G |
| 25BLL-L 25BLL-R 25BLL-W 25BLLF-L 25BLLF-R 25BLLF-W |
5 | 5 | 10 | 1 2 |
- | - |
| 6 | 6 | |||||
| 8 | 6 | 10 13 20 25 |
1 2 3 |
0.1 – 2.5 | 30 45 |
|
| 8 | ||||||
| 10 | 6 | 0.1 – 3.0 | ||||
| 8 | ||||||
| 10 | ||||||
| 13 | 6 | 0.1 – 3.5 | ||||
| 8 | ||||||
| 10 |
Swipe
| Model | V | H | L | S | A 0.1mm. increment |
| 25BLH-L 25BLH-R 25BLH-W |
6 | 6 | 8 10 |
1 2 |
0.8 – 1.8 |
| 8 | 8 | 1.0 – 3.5 | |||
| 10 | 10 | 1.0 – 5.0 |
