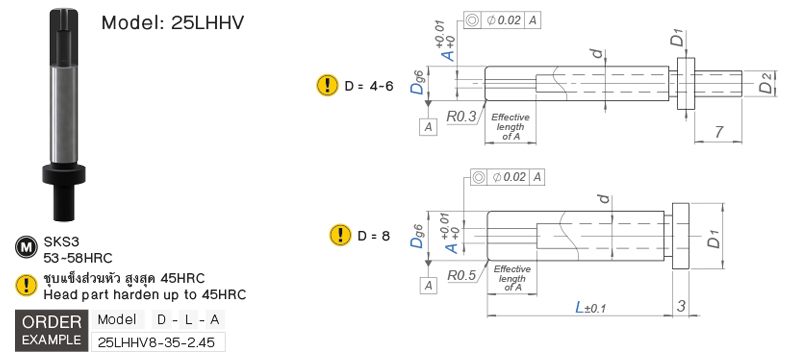

Lifter Pins with Pilot Punch Relief Hole
Lifter Pins with Pilot Punch Relief Hole for metal stamping die transfer system.
Model: 25LHHV
more
- Model 25LHHV
- Manufacturer Code LHHV
View Online
Download
Swipe
| Model | D g6 | L | A 0.01mm. increment |
D1 | D2 | min. effective length of A | d | |||||||
| 25LHHV | 4 | -0.004 -0.012 |
20 | 22 | 25 | 30 | 1.00 – 1.60 | 6 | 3 | 2 | 2.2 | |||
| 6 | 25 | 30 | 33 | 35 | 1.00 – 3.00 | 8 | 4.6 | 3 | 3.4 | |||||
| 8 | -0.005 -0.014 |
30 | 33 | 35 | 40 | 1.00 – 4.00 | 10 | - | 4 | 4.4 | ||||
