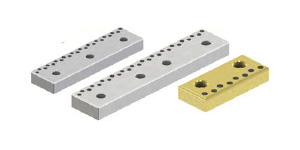

กิ๊บเพลท
Gib Plate
กิ๊บเพลท Gib Plate ชิ้นส่วนแม่พิมพ์ฉีดพลาสติก
Models:
25SCUF (เหล็กหล่อ FC250 + Oil Free)
25SCUI (เหล็ก S45C + Hardened + Oil Free)
25SCUW (ทองเหลือง Copper Alloy + Oil Free)
more
- Model 25SCUF/25SCUI/25SCUW
- Manufacturer Code SCUF/SCUI/SCUW/MCUF/MCUS/MCUW
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| Model | Type | W | L | T | La | Lb | Lc | Wa | S | d | No. Holes |
| 25SCU | I (Steel +Oilfree) W (Copper Alloy +Oilfree) |
25 | 75 | 10 | 45 | 15 | - | 8 | 7.5 | 9 | 2 |
| 100 | 50 | 25 | |||||||||
| 125 | 75 | ||||||||||
| 33 | 75 | 45 | 15 | 12.5 | 9 | 11 | |||||
| 100 | 50 | 25 | |||||||||
| 125 | 75 | ||||||||||
| 150 | 100 | ||||||||||
| 200 | 75 | 3 | |||||||||
| F (Cast Iron +Oilfree) I (Steel +Oilfree) W (Copper Alloy +Oilfree) |
52 | 100 | 20 | 50 | - | 20 | 13 | 13 | 2 | ||
| 150 | 3 | ||||||||||
| 200 | 75 | ||||||||||
| 250 | 50 | 4 | |||||||||
| 72 | 100 | 30 | 50 | - | 25 | 22 | 18 | 2 | |||
| 150 | 3 | ||||||||||
| 200 | 75 | ||||||||||
| 250 | 50 | 4 | |||||||||
| 77 | 150 | 35 | 50 | - | 27 | 3 | |||||
| 200 | 75 | ||||||||||
| 250 | 50 | 4 | |||||||||
| 82 | 150 | 40 | 50 | - | 32 | 3 | |||||
| 200 | 75 | ||||||||||
| 250 | 50 | 4 | |||||||||
| 105 | 150 | 50 | - | 3 | |||||||
| 200 | 50 | ||||||||||
| 250 | 75 | 4 |
