เอ็นมิล กัดมุม R ขนาดเล็ก
Micro Round Corner

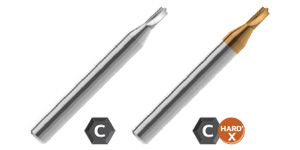

ดอกเอ็นมิลคาร์ไบด์กัดมุม R (Radius) Magafor ขนาดเล็ก เริ่มจาก radius เล็กสุดที่ R0.10
more
- Model 068550/068550H
- Manufacturer Code 8550/8550H
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| R ±0.02 |
d1 | d2 h6 |
d3 0+0.02 |
Δx | ℓ | L | Order Code | |
| Carbide | Carbide+Hard’X | |||||||
| Model 068550 | Model 068550H | |||||||
| 0.1 | 0.5 | 3 | 0.8 | 0.35 | 2.5 | 50 | 06855000100 | 068550H0010 |
| 0.15 | 0.5 | 3 | 0.9 | 0.4 | 2.5 | 50 | 06855000150 | 068550H0015 |
| 0.2 | 0.5 | 3 | 1 | 0.45 | 2.5 | 50 | 06855000200 | 068550H0020 |
| 0.25 | 0.5 | 3 | 1.1 | 0.5 | 2.5 | 50 | 06855000250 | 068550H0025 |
| 0.3 | 0.5 | 3 | 1.2 | 0.55 | 2.5 | 50 | 06855000300 | 068550H0030 |
| 0.4 | 0.5 | 3 | 1.4 | 0.65 | 2.5 | 50 | 06855000400 | 068550H0040 |
| 0.5 | 0.5 | 3 | 1.6 | 0.75 | 2.5 | 50 | 06855000500 | 068550H0050 |
| 0.6 | 0.5 | 3 | 1.8 | 0.85 | 3 | 50 | 06855000600 | 068550H0060 |
| 0.7 | 0.5 | 3 | 2 | 0.95 | 3 | 50 | 06855000700 | 068550H0070 |
| 0.75 | 0.5 | 3 | 2.1 | 1 | 3 | 50 | 06855000750 | 068550H0075 |
| 0.8 | 0.8 | 3 | 2.5 | 1.2 | 4 | 50 | 06855000800 | 068550H0080 |
| 0.9 | 0.8 | 3 | 2.7 | 1.3 | 4 | 50 | 06855000900 | 068550H0090 |
| 1 | 0.8 | 3 | 2.9 | 1.4 | 4 | 50 | 06855001000 | 068550H0100 |
| 1.25 | 0.8 | 4 | 3.4 | 1.65 | 4 | 50 | 06855001250 | 068550H0125 |
| 1.5 | 1.5 | 5 | 4.6 | 2.25 | 6 | 50 | 06855001500 | 068550H0150 |
| 1.75 | 1.5 | 6 | 5.1 | 2.5 | 6 | 50 | 06855001750 | 068550H0175 |
| 2 | 1.5 | 6 | 5.6 | 2.75 | 8 | 50 | 06855002000 | 068550H0200 |
| 2.25 | 1.5 | 8 | 6.1 | 3 | 10 | 50 | 06855002250 | 068550H0225 |
| 2.5 | 1.5 | 8 | 6.6 | 3.25 | 10 | 50 | 06855002500 | 068550H0250 |
| 3 | 1.5 | 8 | 7.6 | 3.75 | 10 | 50 | 06855003000 | 068550H0300 |
| 4 | 1.9 | 10 | 10 | 4.95 | - | 55 | 06855004000 | 068550H0400 |
| 5 | 1.9 | 12 | 12 | 5.95 | - | 63 | 06855005000 | 068550H0500 |
| 6 | 1.9 | 14 | 14 | 6.95 | - | 74 | 06855006000 | 068550H0600 |
