หัวฉีดน้ำแรงดันสูง Direct Injection
High Pressure Direct Injection Nozzle

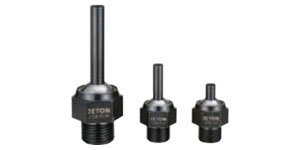

หัวฉีดน้ำแรงดันสูง Direct Injection ปลายปรับองศา และล็อคได้ เพื่อความแม่นยำในการฉีดน้ำ เหมาะสำหรับเครื่อง CNC ส่วนหัวหมุนได้รอบ 360 องศา ปรับองศาได้สูงสุด 70 องศา
เกลียว : PT / NPT / M
more
- Model 13JTSP/13JTSN/13JTSM
- Manufacturer Code JTSP/JTSN/JTSM
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| PT Thread | ||||||||
| Order Code | SPECIFICATIONS | MAJOR SIZE unit(mm) | ||||||
| D | THREAD(S) | L | L1 | D1 | B1 | HEXAGRAM(B) | ||
| 13JTSP-1/8-20 | 1/8"PT-ø4*20L | 4 | PT 1/8" | 20 | 10 | 6 | 6 | 17 |
| 13JTSP-1/8-40 | 1/8"PT-ø4*40L | 4 | PT 1/8" | 40 | 10 | 6 | 6 | 17 |
| 13JTSP-1/8-60 | 1/8"PT-ø4*60L | 4 | PT 1/8" | 60 | 10 | 6 | 6 | 17 |
| 13JTSP-1/4-20 | 1/4"PT-ø4*20L | 4 | PT 1/4" | 20 | 10 | 6 | 6 | 17 |
| 13JTSP-1/4-40 | 1/4"PT-ø4*40L | 4 | PT 1/4" | 40 | 10 | 6 | 6 | 17 |
| 13JTSP-1/4-60 | 1/4"PT-ø4*60L | 4 | PT 1/4" | 60 | 10 | 6 | 6 | 17 |
| 13JTSP-3/8-30 | 3/8"PT-ø6*30L | 6 | PT 3/8" | 30 | 13 | 8 | 10 | 24 |
| 13JTSP-3/8-50 | 3/8"PT-ø6*50L | 6 | PT 3/8" | 50 | 13 | 8 | 10 | 24 |
| 13JTSP-3/8-70 | 3/8"PT-ø6*70L | 6 | PT 3/8" | 70 | 13 | 8 | 10 | 24 |
| 13JTSP-1/2-40 | 1/2"PT-ø8*40L | 8 | PT 1/2" | 40 | 18 | 10 | 12 | 32 |
| 13JTSP-1/2-60 | 1/2"PT-ø8*60L | 8 | PT 1/2" | 60 | 18 | 10 | 12 | 32 |
| 13JTSP-1/2-80 | 1/2"PT-ø8*80L | 8 | PT 1/2" | 80 | 18 | 10 | 12 | 32 |
เลื่อนได้
| NPT Thread | ||||||||
| Order Code | SPECIFICATIONS | MAJOR SIZE unit(mm) | ||||||
| D | THREAD(S) | L | L1 | D1 | B1 | HEXAGRAM(B) | ||
| 13JTSN-1/8-20 | 1/8"NPT-ø4*20L | 4 | NPT 1/8" | 20 | 10 | 6 | 6 | 17 |
| 13JTSN-1/8-40 | 1/8"NPT-ø4*40L | 4 | NPT 1/8" | 40 | 10 | 6 | 6 | 17 |
| 13JTSN-1/8-60 | 1/8"NPT-ø4*60L | 4 | NPT 1/8" | 60 | 10 | 6 | 6 | 17 |
| 13JTSN-1/4-20 | 1/4"NPT-ø4*20L | 4 | NPT 1/4" | 20 | 10 | 6 | 6 | 17 |
| 13JTSN-1/4-40 | 1/4"NPT-ø4*40L | 4 | NPT 1/4" | 40 | 10 | 6 | 6 | 17 |
| 13JTSN-1/4-60 | 1/4"NPT-ø4*60L | 4 | NPT 1/4" | 60 | 10 | 6 | 6 | 17 |
| 13JTSN-3/8-30 | 3/8"NPT-ø6*30L | 6 | NPT 3/8" | 30 | 13 | 8 | 10 | 24 |
| 13JTSN-3/8-50 | 3/8"NPT-ø6*50L | 6 | NPT 3/8" | 50 | 13 | 8 | 10 | 24 |
| 13JTSN-3/8-70 | 3/8"NPT-ø6*70L | 6 | NPT 3/8" | 70 | 13 | 8 | 10 | 24 |
| 13JTSN-1/2-40 | 1/2"NPT-ø8*40L | 8 | NPT 1/2" | 40 | 18 | 10 | 12 | 32 |
| 13JTSN-1/2-60 | 1/2"NPT-ø8*60L | 8 | NPT 1/2" | 60 | 18 | 10 | 12 | 32 |
| 13JTSN-1/2-80 | 1/2"NPT-ø8*80L | 8 | NPT 1/2" | 80 | 18 | 10 | 12 | 32 |
เลื่อนได้
| M Thread | ||||||||
| Order Code | SPECIFICATIONS | MAJOR SIZE unit(mm) | ||||||
| D | THREAD(S) | L | L1 | D1 | B1 | HEXAGRAM(B) | ||
| 13JTSM-10-15 | M10*1.25P*ø4*15L | 4 | M10*1.25P | 15 | 10 | 6 | 6 | 17 |
| 13JTSM-10-20 | M10*1.25P*ø4*20L | 4 | M10*1.25P | 20 | 10 | 6 | 6 | 17 |
| 13JTSM-10-40 | M10*1.25P*ø4*40L | 4 | M10*1.25P | 40 | 10 | 6 | 6 | 17 |
| 13JTSM-10-60 | M10*1.25P*ø4*60L | 4 | M10*1.25P | 60 | 10 | 6 | 6 | 17 |
| 13JTSM-20-30 | M20*1.5P*ø6*30L | 6 | M20*1.5P | 30 | 13 | 8 | 10 | 24 |
| 13JTSM-20-50 | M20*1.5P*ø6*50L | 6 | M20*1.5P | 50 | 13 | 8 | 10 | 24 |
| 13JTSM-20-70 | M20*1.5P*ø6*70L | 6 | M20*1.5P | 70 | 13 | 8 | 10 | 24 |
| 13JTSM-24-40 | M24*2.0P*ø8*40L | 8 | M24*2.0P | 40 | 18 | 10 | 12 | 32 |
| 13JTSM-24-60 | M24*2.0P*ø8*60L | 8 | M24*2.0P | 60 | 18 | 10 | 12 | 32 |
| 13JTSM-24-80 | M24*2.0P*ø8*80L | 8 | M24*2.0P | 80 | 18 | 10 | 12 | 32 |
