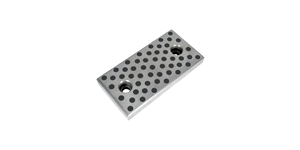

Steel Wear Plate (20mm)

Oil Free Steel Wear Plate (20mm)
Standard sliding components Oil Free for press die, usable without the need to reapply oil.

25SWI : S45C + Oil Free Solid Lubricant
*Adding oil grooves can be order as optional

more
  • Model 25SWI
  • Manufacturer Code SWI/FRP
Brand
OIL FREE
OIL FREE
  • Base Material

    Steel

  • Height (mm)

    20

Swipe

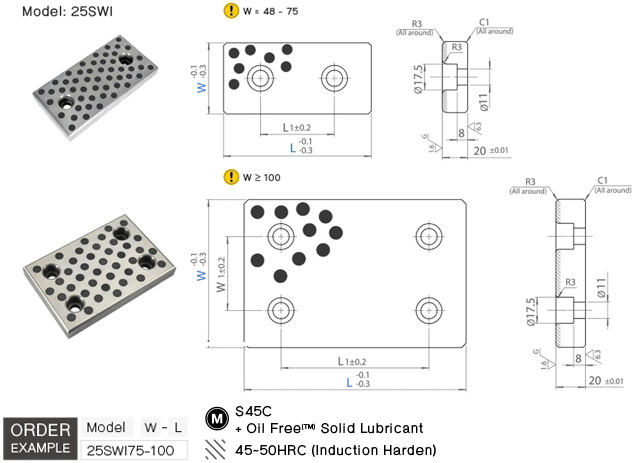

Steel Wear Plate (20mm) drawing
Model W L L1 W1
25SWI 48 75 45 -
100 50
125 75
150 100
200 150
75 75 25 -
100 50
125 75
150 100
200 150
100 100 50 50
125 75
150 100
200 150
250 200
125 125 75 50
150 100
200 150
250 200
150 150 100 100
200 150
250 200
