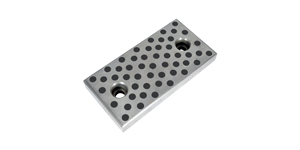

Cast Iron Wear Plate (20mm)

Oil Free Cast Iron Wear Plate (20mm)
Standard sliding components Oil Free for press die, usable without the need to reapply oil.

25SWF and 25SWFD : FC250 + Oil Free Solid Lubricant
*Adding oil grooves can be order as optional

more
  • Model 25SWF/25SWFD
  • Manufacturer Code SWF/SWFD/MWF/SESF/FWP/MWFT/SESFT/FTP
Brand
OIL FREE
OIL FREE
  • Base Material

    Cast Iron

  • Height (mm)

    20

Swipe

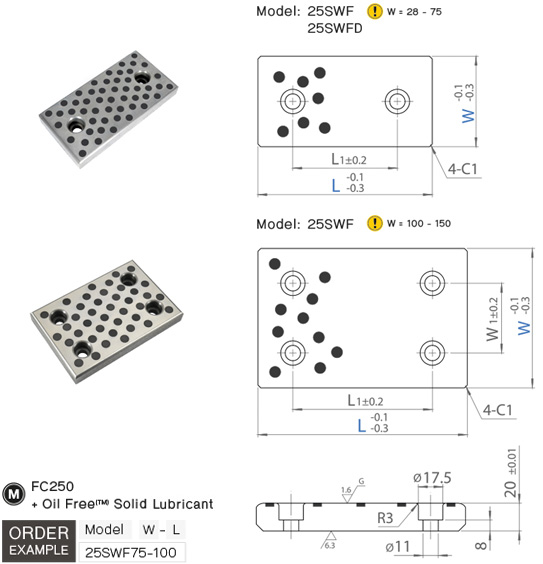

Cast Iron Wear Plate (20mm) drawing
Model W L L1 W1
25SWF 28 75 45 –
100 50
125 75
150 100
200 150
38 75 45 –
100 50
125 75
150 100
200 150
48 75 45 –
100 50
125 75
150 100
200 150
58 75 45 –
100 50
125 75
150 100
75 75 25 –
100 50
125 75
150 100
200 150
250 200
300 250
25SWF
25SWFD		 100 100 50 50
125 75
150 100
200 150
250 200
300 200
125 125 75 50
150 100
200 150
250 200
300 200
150 150 100 100
200 150
250 200
300 250
25SWF 200 200 150 150
250 200
300 250
