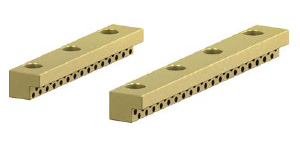

Slide Plate L-Shape
Bronze Copper Alloy L-Shape Slide Plate
Slide components Oil Free for mold, usable without the need to reapply oil.
Model: 25SOLW Copper Alloy + Oil Free(TM) Solid Lubricant
more
- Model 25SOLW
- Manufacturer Code SOLW/SOL
View Online
Download
Swipe

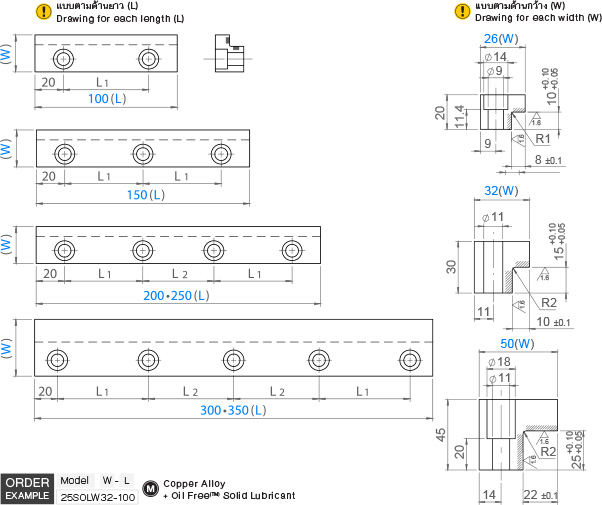

| Model | W | L | L1 | L2 | Mounting Bolts | |
| Size | No. | |||||
| 25SOLW | 26 | 100 | 60 | - | M8 | 2 |
| 150 | 55 | 3 | ||||
| 200 | 50 | 4 | ||||
| 32 | 100 | 60 | - | M10 | 2 | |
| 150 | 50 | 3 | ||||
| 200 | 50 | 4 | ||||
| 250 | 70 | 70 | ||||
| 50 | 200 | 55 | 50 | |||
| 250 | 70 | 70 | ||||
| 300 | 65 | 65 | 5 | |||
| 350 | 80 | 75 | ||||
