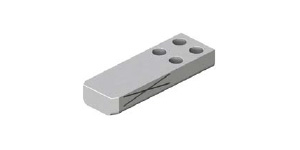

Square Guide Bar

component for injection mold positioning Square Guide Bar Z18.
Model: 21HAS-Z18

more
  • Model 21HAS-Z18
  • Manufacturer Code HAS-Z18/Z18
Brand
OIL FREE
OIL FREE
  • Type

    Slide Block

  • Lubrication

    Oil Groove

Swipe

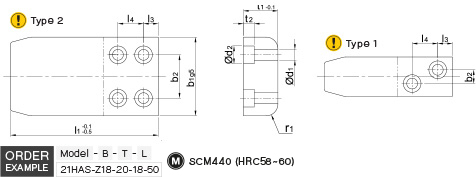

Square Guide Bar drawing
Model B T L l3 l4 b2 d1 d2 t2 r1 type
21HAS-Z18 20 18 50 8 9 7 5.5 10 5.7 6 1
75
32 22 70 9 18 14 6.6 11 6.8 6 2
90
112
50 30 90 12 21 24 9 15 9 8 2
125
150
63 32 112 15 26 30 11 18 11 10 2
150
175
80 35 112 15 26 44 11 18 11 12 2
150
175
100 50 175 18 32 55 13.5 20 13 15 2
200
250
120 65 200 20 35 75 13.5 20 13 15 2
250
300
