Square Guide Jaws
Component for injection mold positioning Square Guide Jaws Z19.
Model: 21HAS-Z19
more
- Model 21HAS-Z19
- Manufacturer Code HAS-Z19/Z19
View Online
Download
Swipe

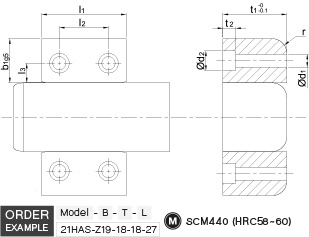

| Model | B | T | L | l2 | l3 | d1 | d2 | t2 | r1 |
| 21HAS-Z19 | 18 | 18 | 27 | 12 | 8 | 5.5 | 10 | 5.7 | 6 |
| 20 | 22 | 36 | 16 | 10 | 6.6 | 11 | 6.8 | 6 | |
| 25 | 30 | 46 | 24 | 11 | 9 | 15 | 9 | 8 | |
| 32 | 32 | 56 | 30 | 16 | 11 | 18 | 11 | 10 | |
| 35 | 35 | 56 | 30 | 16 | 11 | 18 | 11 | 12 | |
| 40 | 50 | 76 | 40 | 17 | 13.5 | 20 | 13 | 15 | |
| 45 | 65 | 86 | 50 | 20 | 13.5 | 20 | 13 | 15 |
