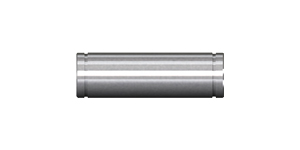

Bell Crank Lifter Parts (Joint Pin)

Bell Crank Lifter Parts (Joint Pin) standard bell crank component for die transferring.

Model: 25SBCJP

more
  • Model 25SBCJP
  • Manufacturer Code SBCJP/SBJP
Brand
OIL FREE
OIL FREE
  • Type

    Bell Crank

Swipe

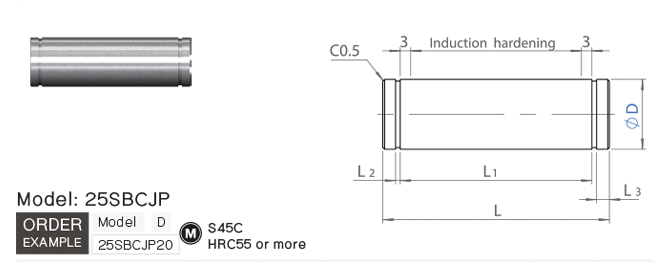

Bell Crank Lifter Parts (Joint Pin) drawing
Model D d L L1 L2 L3 For
Cylinder Diameter
25SBCJP 16 0
-0.027
15.2 0
-0.11
53 46.5 1.15 +0.14
0
2.7 D63
20 0
-0.033
19 0
-0.21
65 56.5 1.35 +0.14
0
2.9 D80, D100, D125
