Bell Crank Lifter Parts (Arm & Joint)
Bell Crank Lifter Parts (Arm & Joint) standard bell crank component for die transferring.
Arm Model: 25SBCL
Arm with Joint Model: 25SBCS
Joint Model: 25SBCJ
more
- Model 25SBCL/25SBCS/25SBCJ
- Manufacturer Code SBCL/SBCS/SBCJ/SBJ/SBLA/SBSA
View Online
Download
Swipe

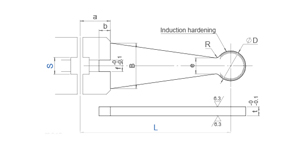

| Model | S | L 10mm increments |
a | b | B | e | f | D | R | t |
| 25SBCL | 28 | 100 ~ 300 | 35 | 15 | 60 | 25 | 20 | 40 | 10 | 15 |
| 38 | 100 ~ 400 | 40 | 15 | 80 | 30 | 30 | 50 | 20 | 20 | |
| 50 | 100 ~ 600 | 50 | 20 | 100 | 30 | 40 | 50 | 20 | 20 |
Swipe
| Model | S | L 10mm increments |
a | b | B | e | f e9 | d H7 | L1 | t | ||
| 25SBCS | 28 | 100 ~ 300 | 35 | 15 | 60 | 40 | 20 | -0.04 -0.092 |
22 | -0.04 -0.092 |
20 | 16 |
| 38 | 100 ~ 400 | 40 | 15 | 80 | 45 | 30 | -0.04 -0.092 |
28 | -0.04 -0.092 |
22.5 | 20 | |
| 50 | 100 ~ 600 | 50 | 20 | 100 | 50 | 40 | -0.05 -0.112 |
28 | -0.05 -0.112 |
25 | 20 | |
Swipe
| Model | C | M | P | Screw Thread (joint area) |
L1 | L | H | H1 | d | W | For Cylinder Diameter |
|
| 25SBCJ | 40 | 18 | 1.5 | R (Right Hand) L (Left Hand) |
30 | 95 | 75 | 25 | 16 | +0.018 0 |
16 | D63 |
| 20 | 2.5 | |||||||||||
| 50 | 22 | 1.5 | 40 | 110 | 85 | 35 | 20 | +0.021 0 |
20 | D80 D100 |
||
| 24 | 3.0 | |||||||||||
| 27 | 1.5 | D125 | ||||||||||
| 3.0 | ||||||||||||
