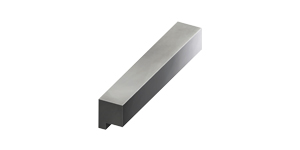

Stock Guide Plate
Stock Guide Plate and Spacer for Stock Guide for metal stamping die transfer system.

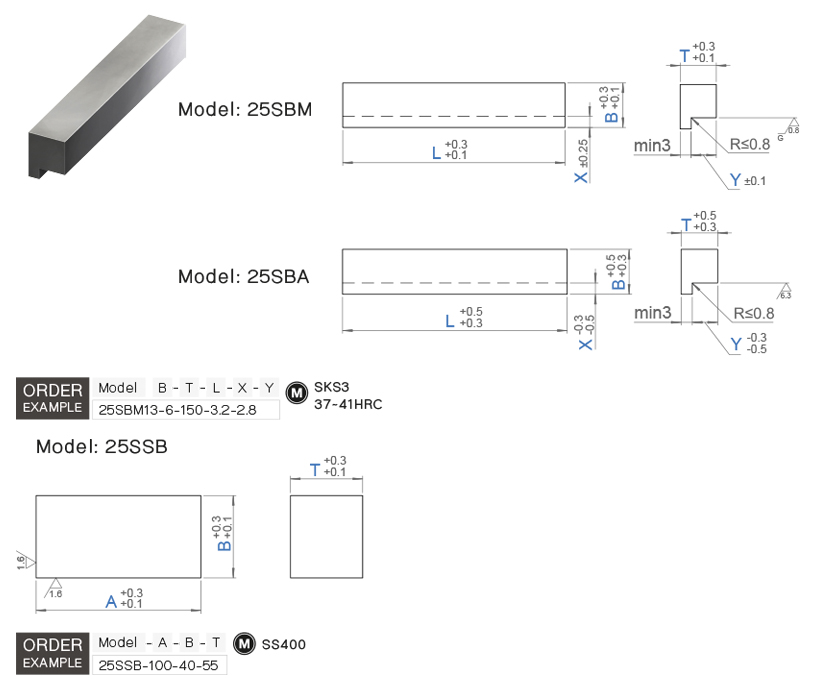

Stock Guide Plate Model: 25SBM and Model: 25SBA
Spacer for Stock Guide Model: 25SSB
more
- Model 25SBM/25SBA/25SSB
- Manufacturer Code SBM/SBA/SSB
View Online
Download
Swipe
| Model | B | T | L 1mm. Increment |
X 0.1mm. Increment |
Y 0.1mm. Increment |
| 25SBM 25SBA |
13 | 6 , 8 , 10 | 10 – 200 | 1.0 – 5.0 | 1.0 – T-3.0 |
| 16 | 6 , 8 , 10 , 13 | 10 – 200 | |||
| 20 | 8 , 10 , 13 , 16 | 10 – 200 | |||
| 25 | 8 , 10 , 13 , 16 | 10 – 200 |
Swipe
| Model | A | B | T 1mm. Increment |
| 25SSB | 60 | 25 40 55 |
5 – 60 |
| 80 | |||
| 100 | |||
| 125 | |||
| 160 | |||
| 200 |
