Material Guide Units SUK

Material Guide Units for metal stamping die transfer system
A Type Fixed to Die Set Model: 25SUK-A
B Type Fixed to Die Plate Model: 25SUK-B

more
  • Model 25SUK-A/25SUK-B
  • Manufacturer Code SUK-A/SUK-B
Brand
OIL FREE
OIL FREE
  • Type

    Material Guide

Swipe

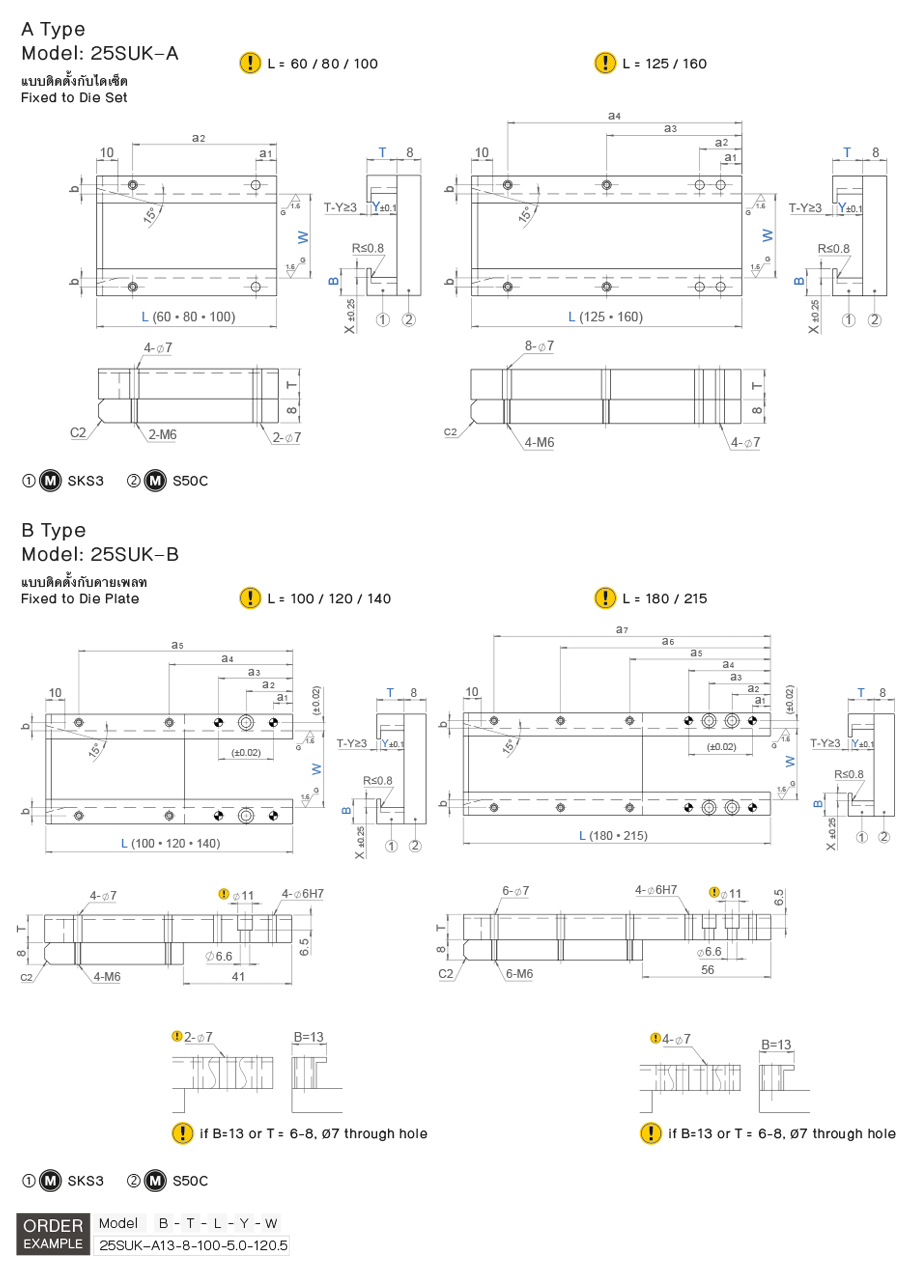

Material Guide Units SUK drawing
Model B T L Y
0.1mm.
increment		 W
0.1mm.
increment		 a1 a2 a3 a4 a5 a6 a7 b X
25SUK-A 13 6 8 10

60 1.0 – T-3.0 7.0 – 160.0 10 45 - - - - - 5 3
80 65
100 75
125 25 60 100
16 6 8 10 13
60 10 45 - - 7 3
80 65
100 75
125 25 60 100
20
8 10 13 16 60 10 45 - - 8 5
80 65
100 75
125 25 60 100
160 25 60 135
25
8 10 13 16 60 10 45 - - 10 5
80 65
100 75
125 25 60 100
160 25 60 135
25SUK-B 13 6 8 10

100 1.0 – T-3.0 7.0 – 160.0 8 20 32 50 85 - - 5 3
120 105
140 115
180 35 47 75 115 115
16 6 8 10 13
100 8 20 32 50 85 - - 7 3
120 105
140 115
180 35 47 75 115 115
20
8 10 13 16 100 8 20 32 50 85 - - 8 5
120 105
140 115
180 35 47 75 115 115
215 75 130 190
25
8 10 13 16 100 8 20 32 50 85 - - 10 5
120 105
140 115
180 35 47 75 115 115
215 75 130 190
