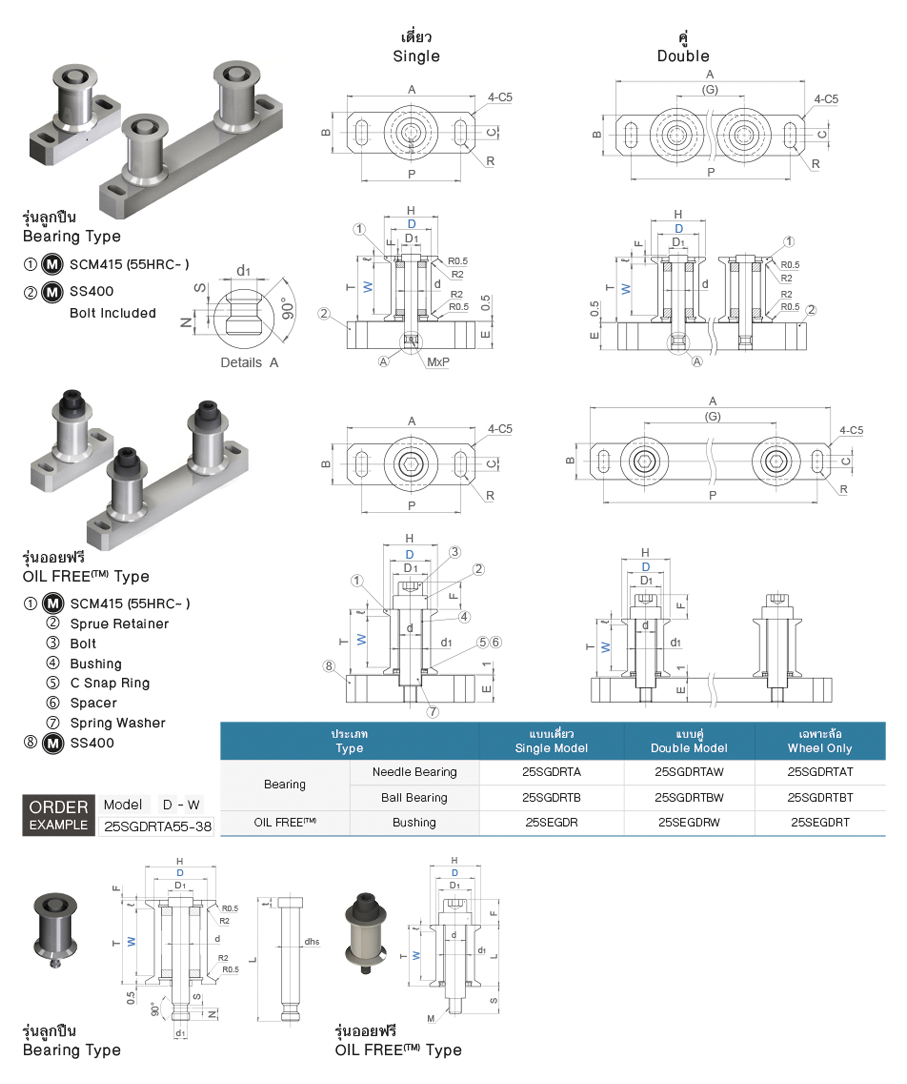

Material Guide Roller Sets
Bearing type material guide rollers sold in set or individually for guiding materials into metal stamping die.
Select from 3 Bearing Types:
- Needle Bearing
- Ball Bearing
- Oil Free Bushing
Order from 3 Models:
- Single Model
- Double Model
- Wheel Only
more
- Model 25SGDRTA/25SGDRTAW/25SGDRTB/25SGDRTBW/25SEGDR/25SEGDRW/25SGDRTAT/25SGDRTBT/25SEGDRT
- Manufacturer Code GDRTA/GDRTB/SGSRA/SGSBA/EGDR
View Online
Download
Swipe
| Model | D | W | T | H | ℓ | d | A | B | C | P | R | E | F | G | D1 | ||
| Single | Double | Single | Double | Double | |||||||||||||
| 25SGDRTA 25SGDRTAW |
30 | 38 | 48 | 40 | 5 | 10 | 95 | 395 | 30 | 10 | 73 | 373 | 5.5 | 20 | 1.5 | 300 | 14 |
| 55 | 38 | 54 | 75 | 8 | 25 | 145 | 445 | 55 | 20 | 115 | 415 | 6.5 | 35 | 5.5 | 300 | 32 | |
| 55 | 70 | 86 | 75 | 8 | 25 | 145 | 445 | 55 | 20 | 115 | 415 | 6.5 | 35 | 5.5 | 300 | 32 | |
| 25SGDRTB 25SGDRTBW |
30 | 38 | 48 | 40 | 5 | 9 | 95 | 395 | 30 | 10 | 73 | 373 | 5.5 | 20 | 1.5 | 300 | 12 |
| 55 | 38 | 54 | 75 | 8 | 20 | 145 | 445 | 55 | 20 | 115 | 415 | 6.5 | 35 | 5.5 | 300 | 32 | |
| 55 | 70 | 86 | 75 | 8 | 20 | 145 | 445 | 55 | 20 | 115 | 415 | 6.5 | 35 | 5.5 | 300 | 32 | |
| 25SEGDR 25SEGDRW |
30 | 38 | 48 | 40 | 5 | 16 | 95 | 395 | 30 | 10 | 73 | 373 | 5.5 | 20 | 19 | 300 | 24 |
| 55 | 38 | 54 | 75 | 8 | 25 | 145 | 445 | 55 | 20 | 115 | 415 | 6.5 | 35 | 30.5 | 300 | 36 | |
| 55 | 70 | 86 | 75 | 8 | 25 | 145 | 445 | 55 | 20 | 115 | 415 | 6.5 | 35 | 30.5 | 300 | 36 | |
Swipe
| Model | D | W | L | t | d1 | S | N | M |
| 25SGDRTAT | 30 | 38 | 67 | 5.5 | 8 | 2.5 | 7 | - |
| 55 | 38 | 92 | 9.5 | 22 | 5 | 17 | ||
| 55 | 70 | 124 | 9.5 | 22 | 5 | 17 | ||
| 25SGDRTBT | 30 | 38 | 67 | 5.5 | 7 | 2.5 | 7 | - |
| 55 | 38 | 92 | 9.5 | 17 | 5 | 17 | ||
| 55 | 70 | 124 | 9.5 | 17 | 5 | 17 | ||
| 25SEGDRT | 30 | 38 | 52 | - | 18 | 15 | 7 | M10 |
| 55 | 38 | 61 | 28 | 26 | 17 | M16 | ||
| 55 | 70 | 93 | 28 | 24 | 17 | M16 |
