Material Guides
Steel guide left and right side for guiding material plate into stamping die machine. Standard component for metal stamping die.

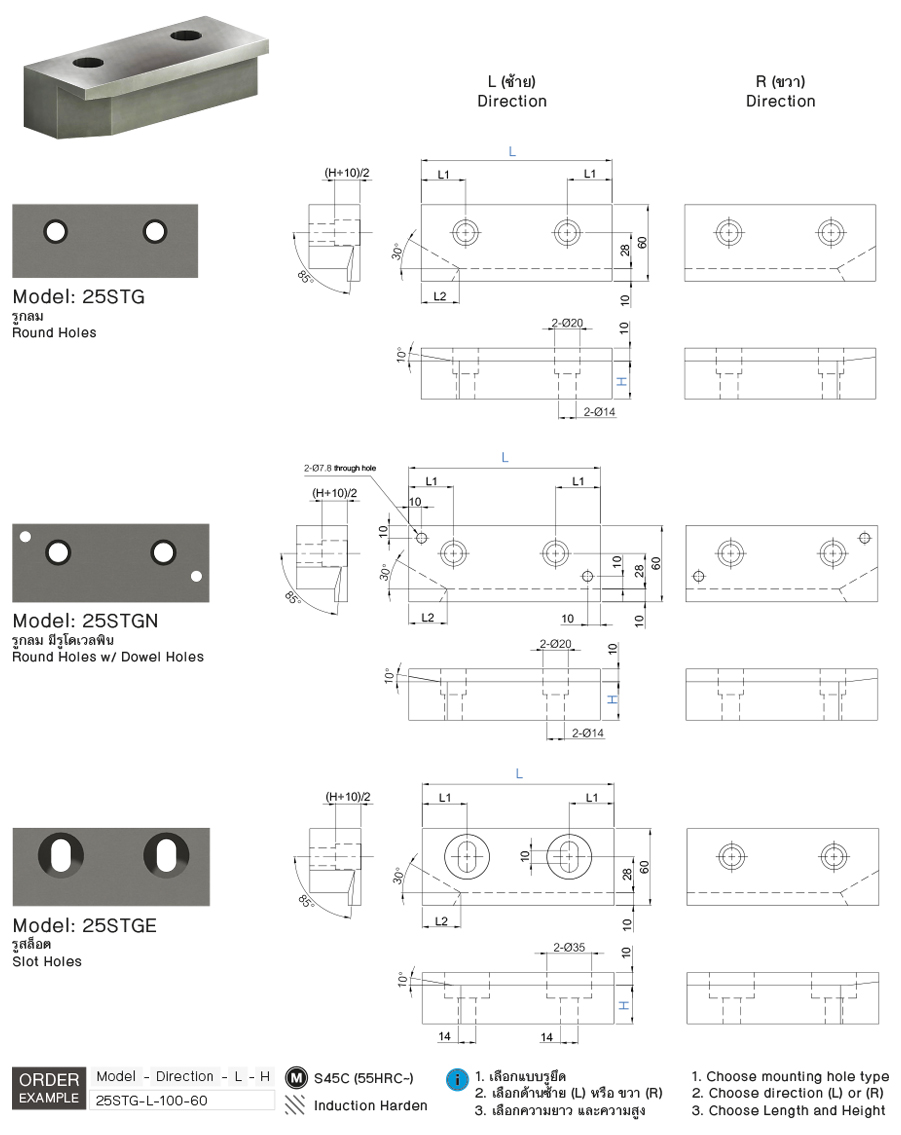

Round Holes Model: 25STG
Round Holes with Dowel Holes Model: 25STGN
Slot Holes Model: 25STGE
more
- Model 25STG/25STGN/25STGE
- Manufacturer Code STG/STGN/STGE/MCG/MCGE/MCGN
View Online
Download
Swipe
| Model | Direction | L | H | L1 | L2 | |||||
| 25STG 25STGN 25STGE |
L R |
100 | 20 | 30 | 40 | 50 | 60 | 70 | 25 | 30 |
| 150 | 20 | 30 | 40 | 50 | 60 | 70 | 35 | 30 | ||
