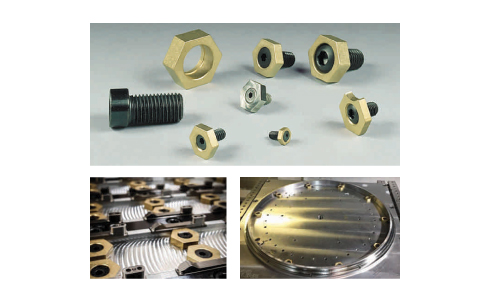

Mitee-Bite Original Fixture Clamps
Mitee-Bite Original Fixture Clamps
ชุดล็อคชิ้นงานด้วยสกรู Mitee-Bite ล็อคด้วยหลักการแคมล็อค ประหยัดพื้นที่ จับงานแน่น เปลี่ยนงาน รวดเร็ว
more
- Model 11MITEE
- Manufacturer Code Original Fixture Clamps
เลื่อนได้
| Order Code |
Material | A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G* (mm) |
Torque (N.m.) | Holding Force | Clamps Per Pack |
| 11MITEE-50204 | Steel + Brass |
M4 | 3 | 0.76 | 7.93 | 2.80 | 9.6 | 3.80 | 2.0 | 910 N | 10 |
| 11MITEE-50206 | M6 | 4 | 1.01 | 15.86 | 4.75 | 11.2 | 7.80 | 8.5 | 3,558 N | 10 | |
| 11MITEE-50208 | M8 | 5 | 1.01 | 20.61 | 4.55 | 15.0 | 10.15 | 11.3 | 3,558 N | 12 | |
| 11MITEE-50210 | M10 | 7 | 1.27 | 20.61 | 6.35 | 19.0 | 10.15 | 28.0 | 8,895 N | 10 | |
| 11MITEE-50212 | M12 | 8 | 2.03 | 25.38 | 9.52 | 22.8 | 12.70 | 88.0 | 17,790 N | 8 | |
| 11MITEE-50216 | M16 | 12 | 2.54 | 30.13 | 12.70 | 28.5 | 15.00 | 125.0 | 26,680 N | 4 | |
| 11MITEE-50218 | M8 | 5 | 1.01 | 20.61 | 4.55 | 15.0 | 10.15 | 11.3 | 3,558 N | 50 | |
| 11MITEE-10214 | Stainless Steel |
M4 | 3 | .76 | 7.93 | 2.80 | 9.6 | 3.80 | 2.0 | 910 N | 4 |
| 11MITEE-10203 | M6 | 4 | 1.01 | 15.86 | 4.75 | 11.2 | 7.80 | 8.50 | 3,558 N | 4 | |
| 11MITEE-10213 | M8 | 5 | 1.01 | 20.60 | 6.35 | 15.0 | 10.15 | 11.30 | 3,558 N | 4 |
เลื่อนได้
| Order Code |
Material | A (inch) |
B (inch) |
C (inch) |
D (inch) |
E (inch) |
F (inch) |
G* (inch) |
Torque (Ft/L bs) |
Holding Force | Clamps Per Pack |
| 11MITEE-10214 | Stainless Steel |
8 � 32 | 5/64 | .030 | .312 | .110 | .350 | .150 | 1.5 | 205 lbs | 4 |
| 11MITEE-10203 | 1/4 � 20 | 1/8 | .040 | .625 | .190 | .470 | .308 | 6.2 | 800 lbs | 4 | |
| 11MITEE-10213 | 5/16 -18 | 3/16 | .040 | .812 | .250 | .460 | .400 | 8.3 | 800 lbs | 4 |
