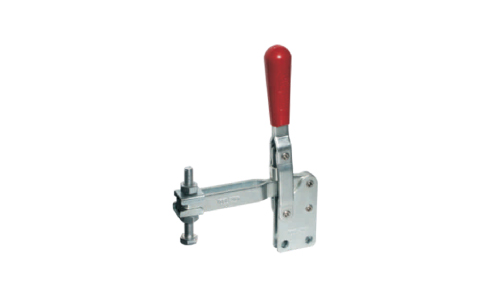

ท็อกเกิ้ลแคลมป์ กดลง แนวตั้ง (ฐานตรง)
Vertical Hold-Down Toggle Clamp (Straight Base)
ท็อกเกิ้ลแคลมป์ (แคลมป์นก) แบบกดลง แนวตั้ง ฐานตรงสำหรับยึดจากด้านข้าง
Model: 11VHDT
more
- Model 11VHDT
- Manufacturer Code VHDT
ดาวน์โหลด
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| Order Code |
ARM TYPE* | A | B MAX. | MOUNTING BASE | I | J SUITABLE FOR SPINDLE DIA | H | HOLDING CAPACITY | N. W. Kgs. | |||||
| C | D | E | F | M | ØG | |||||||||
| 11VHDT-19-U-BS | U-ARM | 50 | 35 | 4 | 26 | 5.5 | 15 | 4 | 4.5Ø | 12 | M-6 | 100 | 70 Kgs. | 0.11 |
| 11VHDT-25-U-BS | U-ARM | 40 | 35 | 6 | 26 | 6.5 | 13 | 6.5 | 5.5Ø | 10 | M-6 | 115 | 100 Kgs. | 0.18 |
| 11VHDT-26-U-BS | U-ARM | 36 | 43 | 6 | 30 | 7 | 16 | 5.5 | 5.5Ø | 10 | M-6 | 110 | 100 Kgs. | 0.18 |
| 11VHDT-32-U-BS | U-ARM | 47 | 65 | 6 | 35 | 8 | 19 | 5.5 | 6.8Ø | 16 | M-8 | 160 | 200 Kgs. | 0.34 |
| 11VHDT-36-U-BS | U-ARM | 57 | 65 | 6 | 35 | 8 | 19 | 10 | 6.8Ø | 16 | M-8 | 173 | 200 Kgs. | 0.35 |
| 11VHDT-45-U-BS | U-ARM | 70 | 95 | 8 | 45 | 8.5 | 28 | 9 | 8.5Ø | 18 | M-10 | 235 | 400 Kgs. | 0.74 |
| 11VHDT-46-U-BS | U-ARM | 77 | 95 | 8 | 45 | 10 | 25 | 13.5 | 8.5Ø | 18 | M-10 | 235 | 400 Kgs. | 0.74 |
| 11VHDT-50-U-BS | U-ARM | 76 | 130 | 8 | 45 | 10 | 25 | 13.5 | 8.5Ø | 18 | M-10 | 235 | 350 Kgs. | 0.79 |
| 11VHDT-60-U-BS | U-ARM | 88 | 120 | 8 | 55 | 9 | 36.5 | 8.5 | 8.5Ø | 20 | M-10 | 298 | 500 Kgs. | 1.35 |
| 11VHDT-80-U-BS | U-ARM | 125 | 135 | 10 | 75 | 12.5 | 50 | 12.5 | 10.5Ø | 32 | M-16 | 385 | 700 Kgs. | 2.28 |
| 11VHDT-85-U-BS | U-ARM | 119 | 150 | 10 | 76 | 15.5 | 45 | 15 | 8.5Ø | 32 | M-16 | 380 | 700 Kgs. | 2.31 |
| * All above base straight models are available with BR ARM or ST ARM also on request. | ||||||||||||||
