บัททอนดายมีบ่า แบบปลายรูลึก
Deep Hole Button Dies Headed Type

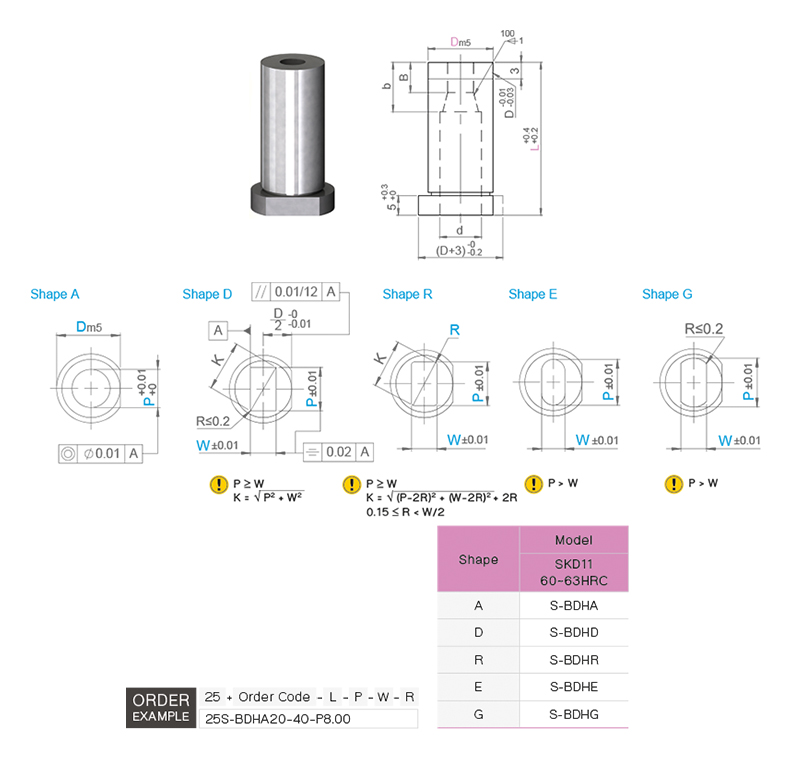

บัททอนดายมีบ่า แบบปลายรูลึก วัสดุ SKD11 60~63HRC
Shape A : S-BDHA
Shape D : S-BDHD
Shape R : S-BDHR
Shape E : S-BDHE
Shape G : S-BDHG
more
ดูออนไลน์
ดาวน์โหลด
เลื่อนได้
| Order Code | L | Shape A | Shape D R E G | B | b | d | |||
| Model | D m5 | P 0.01 mm increment |
P,K Max 0.01 mm increment |
P,W Min 0.01 mm increment |
|||||
| Code | 10 | +0.012 +0.006 |
40 | 2.00 – 6.00 | 6.00 | 1.20 | 6 | 10 | 6.4 |
| 13 | +0.015 +0.007 |
3.00 – 8.00 | 8.00 | 1.50 | 8.4 | ||||
| 16 | 5.00 – 10.00 | 10.00 | 2.00 | 10.6 | |||||
| 20 | +0.017 +0.008 |
7.00 – 12.00 | 12.00 | 3.00 | 8 | 12 | 12.6 | ||
| 25 | 10.00 – 16.00 | 16.00 | 3.00 | 16.6 | |||||
| 32 | +0.020 +0.009 |
15.00 – 20.00 | 20.00 | 4.00 | 10 | 15 | 20.6 | ||
| 38 | 19.00 – 26.00 | 26.00 | 5.00 | 26.6 | |||||
| 45 | 25.00 – 35.00 | 35.00 | 6.00 | 14 | 20 | 36.0 | |||
| 50 | 33.00 – 40.00 | 40.00 | 7.00 | 41.0 | |||||
| 56 | +0.024 +0.011 |
38.00 – 45.00 | 45.00 | 8.00 | 46.0 | ||||
