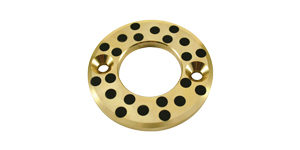

Oil Free Washer (Universal)

Name: Oil Free Washer (Universal)
Brand: OIL FREE
SKU: 25WSBW,25WSBW-NWSBW,WSBW-N,MPWZ,SOBW,SOBWN,SPW
Price: 1 THB

Oil Free Washer for universal use in many dry application such as die, mold, and machines.

Brand

OIL FREE

Swipe

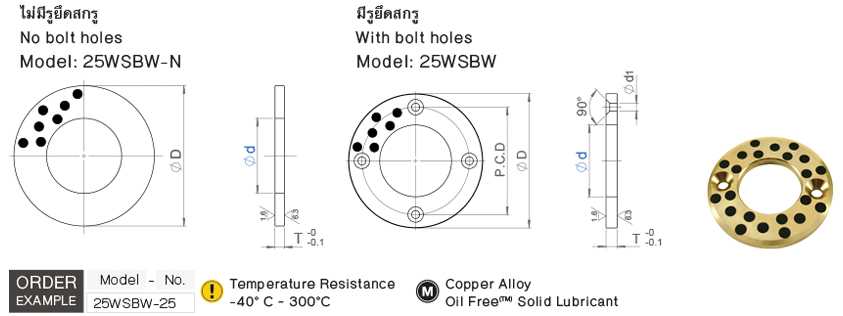

Model	No.	d	D	T	P.c.D	Number of Holes	Flat Head Screw	d1
25WSBW (with holes) 25WSBW-N (no holes)	6	6.2	25	3	15	2	M3	3.5
	8	8.2	28		18
	10	10.2	30		20
	12	12.2	40		28
	13	13.2
	14	14.2
	15	15.2	50		35
	16	16.2
	18	18.2
	20	20.2		5			M5	6
	25	25.2	55		40
	30	30.2	60		45
	35	35.2	70		50
	40	40.2	80	7	60		M6	7
	45	45.3	90	7	67.5
	50	50.3	100	8	75	4
	55	55.3	110		85
	60	60.3	120		90		M8	9
	65	65.3	125		95
	70	70.3	130	10	100
	75	75.3	140		110
	80	80.3	150		120
	90	90.5	170		140		M10	11
	100	100.5	190		160
	120	120.5	200		175
