Super-Mini Ball Retainer
Super high precision miniature brass ball cages. Starting from ball bearing size 0.6mm

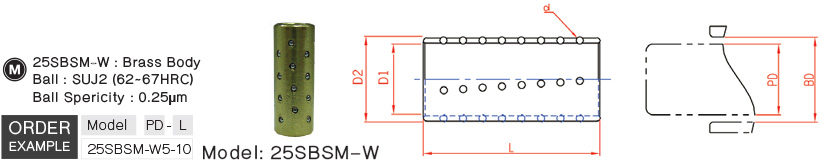

Model: 25SBSM-W
more
- Model 25SBSM-W
Swipe
| Model | PD (Post Diameter) |
L | D1 | D2 | d | Number of Balls |
| 25SBSM-W (Brass) |
2 | 10 | 2.1 | 3.1 | 0.6 | 32 |
| 15 | 52 | |||||
| 20 | 72 | |||||
| 3 | 10 | 3.1 | 4.1 | 32 | ||
| 15 | 52 | |||||
| 20 | 72 | |||||
| 4 | 10 | 4.1 | 5.1 | 40 | ||
| 15 | 65 | |||||
| 20 | 90 | |||||
| 5 | 10 | 5.1 | 6.1 | 48 | ||
| 15 | 78 | |||||
| 20 | 108 | |||||
| 6 | 15 | 6.1 | 7.1 | 78 | ||
| 20 | 108 | |||||
| 30 | 150 | |||||
| 8 | 15 | 8.1 | 9.1 | 104 | ||
| 20 | 144 | |||||
| 30 | 200 |
