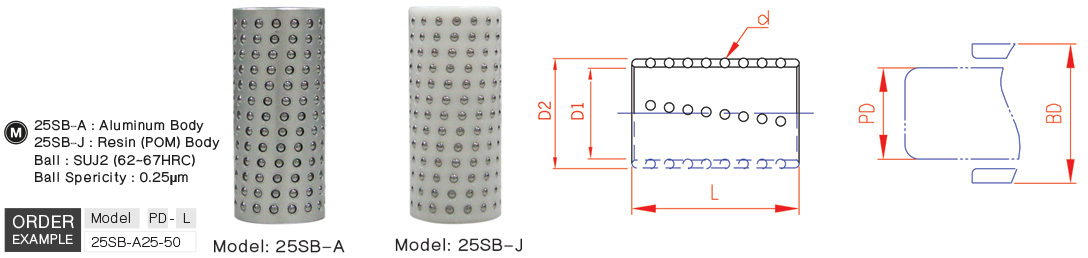

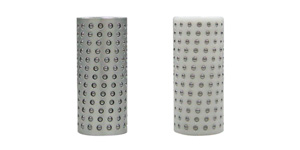

Ball Retainer
Aluminum and Resin (POM) ball cages for use in press die and machine components.
Aluminum Ball Retainer : 25SB-A
Resin/Plastic Ball Retainer : 25SB-J
more
- Model 25SB-A/25SB-J
- Manufacturer Code MBS/MBJ/AMS/PMS/PBR
Swipe
| Model | PD (Post Diameter) |
L | D1 | D2 | d | Number of Balls |
| 25SB-A (Aluminum) 25SB-J (Resin) |
19 | 60 | 19.4 | 24.4 | 3 | 120 |
| 20 | 50 | 20.4 | 25.4 | 96 | ||
| 60 | 120 | |||||
| 22 | 50 | 22.4 | 27.4 | 112 | ||
| 60 | 140 | |||||
| 25 | 50 | 25.4 | 30.4 | 128 | ||
| 60 | 160 | |||||
| 75 | 208 | |||||
| 28 | 75 | 28.4 | 35.4 | 4 | 154 | |
| 32 | 60 | 32.4 | 39.4 | 176 | ||
| 90 | 208 | |||||
| 36 | 80 | 36.4 | 43.4 | 176 | ||
| 90 | 208 | |||||
| 38 | 70 | 38.4 | 47.4 | 5 | 128 | |
| 90 | 176 | |||||
| 40 | 90 | 40.4 | 49.4 | 176 | ||
| 45 | 90 | 45.4 | 54.4 | 198 | ||
| 110 | 234 | |||||
| 50 | 90 | 50.4 | 59.4 | 220 | ||
| 110 | 260 | |||||
| 60 | 90 | 60.4 | 69.4 | 242 | ||
| 100 | 264 | |||||
| 110 | 286 | |||||
| 80 | 90 | 80.4 | 89.4 | 352 |
