Precision Machine Reamers

*This series is changing the code from 650/6509 to 651/6519

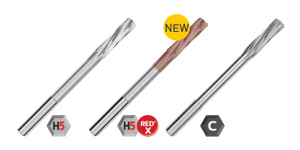

Spiral flute precision machine reamers Magafor 650 / 6509 / 8650. High speed steel with cobalt and carbide for reaming harder material. Available in mm and inch sizes.

Selection 0.1mm size increment.
Replace X in Order Code with size. Ex. Size 3.5 = 06650035000

DIN 212-B / NFE 66014

more
  • Model 06650/066509/068650
  • Manufacturer Code 650/6509/8650/651/6519
Brand
Magafor
Magafor
  • Form

    Spiral

  • Usage

    Machine

  • Materials

    HSSE

    Carbide

Swipe
Precision Machine Reamers drawing
D
(0.1mm Increment)
L ℓ1 ℓ2 d2 Order Code
HSSE HSSE+Red’X Carbide
mm inch Model 06650 Model 066509 Model 068650
1
38 7 22 D 06650010000 06650901000 06865001000
1.1 – 1.5
40 10 24 D 0665001X000 06650901X00 06865001X00
1.6 – 1.7
43 11 25 D 0665001X000 06650901X00 06865001X00
1.8 – 1.9
49 12 31 D 0665001X000 06650901X00 06865001X00
2
49 12 31 D 06650020000 06650902000 06865002000
2.1 – 2.3
49 12 31 D 0665002X000 06650902X00 06865002X00
2.4 – 2.9
57 18 38 D 0665002X000 06650902X00 06865002X00
3
57 18 38 D 06650030000 06650903000 06865003000
3.1 – 3.7
57 18 38 D 0665003X000 06650903X00 06865003X00
3.175 1/8” 57 18 38 D 06650031750 06650903175 06865003175
3.8 – 3.9
75 19 51 4 0665003X000 06650903X00 06865003X00
4
75 19 51 4 06650040000 06650904000 06865004000
4.1 – 4.2
75 19 51 4 0665004X000 06650904X00 06865004X00
4.3 – 4.7
80 21 55 4.5 0665004X000 06650904X00 06865004X00
4.762 3/16” 86 23 60 5 06650047620 06650904762 06865004762
4.8 – 4.9
86 23 60 5 0665004X000 06650904X00 06865004X00
5
86 23 60 5 06650050000 06650905000 06865005000
5.1 – 5.3
86 23 60 5 0665005X000 06650905X00 06865005X00
5.4 – 5.8
93 26 66 5.5 0665005X000 06650905X00 06865005X00
5.9
101 28 73 6 06650059000 06650905900 06865005900
6
101 28 73 6 06650060000 06650906000 06865006000
6.1 – 6.7
101 28 73 6 0665006X000 06650906X00 06865006X00
6.35 1/4” 101 28 73 6 06650063500 06650906350 06865006350
6.8 – 7.5
109 31 80 7 0665006X000 06650906X00 06865006X00
7.6 – 7.9
117 33 86 8 0665007X000 06650907X00 06865007X00
7.937 5/16” 117 33 86 8 06650079370 06650907937 06865007937
8
117 33 86 8 06650080000 06650908000 06865008000
8.1 – 8.5
117 33 86 8 0665008X000 06650908X00 06865008X00
8.6 – 9.5
125 36 91 9 066500XX000 0665090XX00 0686500XX00
9.525 3/8” 125 36 91 9 06650095250 06650909525 06865009525
9.6 – 9.9
133 38 99 10 0665009X000 06650909X00 06865009X00
10
133 38 99 10 06650100000 06650910000 06865010000
10.1 – 11.3
133 38 99 10 066501XX000 0665091XX00 0686501XX00
11.112 7/16” 133 38 99 10 06650111200 06650911120 06865011120
11.4 – 11.9
151 44 106 12 0665011X000 06650911X00 06865011X00
12
151 44 106 12 06650120000 06650912000 06865012000
12.5
151 44 106 12 06650125000
06865012500
12.7 1/2” 151 44 106 12 06650127000
06865012700
13
151 44 106 12 06650130000
06865013000
13.5
160 47 110 14 06650135000
06865013500
14
160 47 110 14 06650140000
06865014000
14.287 9/16” 162 50 112 14 06650142870
06865014287
14.5
162 50 112 14 06650145000
06865014500
15
162 50 112 14 06650150000
06865015000
15.5
170 52 117 16 06650155000
06865015500
15.875 5/8” 170 52 117 16 06650158750
06865015875
16
170 52 117 16 06650160000
06865016000
16.5
175 54 122 16 06650165000
06865016500
17
175 54 122 16 06650170000
06865017000
17.5
182 56 129 16 06650175000
06865017500
18
182 56 129 16 06650180000
06865018000
18.5
189 58 136 16 06650185000
06865018500
19
189 58 136 16 06650190000
06865019000
19.05 3/4” 189 58 136 16 06650190500
06865019050
19.5
195 60 142 16 06650195000
06865019500
20
195 60 142 16 06650200000
06865020000
Swipe
Order Code Material Pcs / Set Set Includes
1 pc each
06650000001 HSSE 8pcs Ø2 / 3 / 4 / 5
/ 6 / 8 / 10 / 12
06865000001 Carbide
06865000001 HSSE 61pcs Ø2.0 - 8.0
(0.1mm increment)
