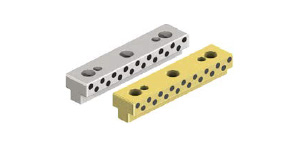

Double Heel Guide Rail
Double Heel Guide Rail with Dowel Hole component for plastic injection mold.
Models:
25SGRTI (Steel SKS3 + Oil Free)
25SGRTW (Copper Alloy + Oil Free)
more
- Model 25SGRTI/25SGRTW
- Manufacturer Code SGRTI/SGRTW/TGLWN
View Online
Download
Swipe
| Model | Type | W | L | La | Lb | Lc | Ld | T | H | t | d | d1 | h | e H7 | |
| 25SGRT | I (Steel+Oilfree) W (Copper Alloy +Oilfree) |
20 | 60 | 35 | 12.5 | 15 | 22.5 | 15 | 8 | 4.5 | 5.5 | 9.5 | 6 | 6 | +0.012 +0.000 |
| 80 | 55 | 35 | |||||||||||||
| 100 | 75 | 55 | |||||||||||||
| 25 | 80 | 50 | 15 | 20 | 30 | 20 | 8 | 5.5 | 6.5 | 11 | 7 | ||||
| 100 | 70 | 40 | |||||||||||||
| 120 | 45 | 60 | |||||||||||||
| 30 | 100 | 65 | 17.5 | 40 | 30 | 25 | 10 | 7.5 | 9 | 14 | 9 | 8 | +0.015 +0.000 |
||
| 120 | 42.5 | 60 | |||||||||||||
| 140 | 52.5 | 80 | |||||||||||||
| 40 | 120 | 40 | 20 | 40 | 40 | 30 | 15 | 11 | 11 | 18 | 11 | ||||
| 140 | 50 | 60 | |||||||||||||
| 160 | 60 | 80 | |||||||||||||
| 180 | 70 | 100 | |||||||||||||
