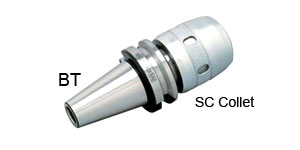

BT SC Collet Chuck
BT shank milling chuck ASC serie for holding straight collet (SC). The milling chuck is suitable for high speed precision work.
Max Speed : 30,000r.p.m. G2.5
more
- Model 07BT
View Online
Download
Swipe
| Order Code | BT Shank |
SC Collet Size |
Holding Capacity |
L | d | D |
| 07BT30-ASC25-85 | BT30 | SC25 | 6-20 | 85 | 25 | 58 |
| 07BT40-ASC25-90 | BT40 | SC25 | 6-20 | 90 | 25 | 58 |
| 07BT40-ASC32-95 | SC32 | 6-25 | 95 | 32 | 68 | |
| 07BT50-ASC25-100 | BT50 | SC25 | 6-20 | 100 | 25 | 58 |
| 07BT50-ASC32-105 | SC32 | 6-25 | 105 | 32 | 76 | |
| 07BT50-ASC32-110 | SC32 | 6-25 | 110 | 32 | 76 |
