SC Collets

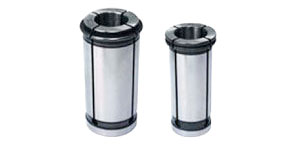

Straight Collet, SC type.

Types : SC12, SC16, SC20, SC25, SC32, SC42

more
  • Model 07SC
  • Manufacturer Code SC
Brand
Ann Way
Ann Way
  • Type

    Collet

  • Collet Type

    SC

Swipe
SC Collets drawing
SC12
(D1 = 12, H1 = 40)
SC16
(D1 = 16, H1 = 42)
SC20
(D1 = 20, H1 = 52)
SC25
(D1 = 25, H1 = 63)
SC32
(D1 = 32, H1 = 71)
SC42
(D1 = 42, H1 = 71)
D2 D2 D2 D2 D2 D2
03 03 04 06 06 06
04 04 06 08 08 08
05 05 08 10 10 10
06 06 10 12 12 12
07 07 12 16 16 16
08 08 14 20 20 20
09 09 16
25 25
10 10


32

11




12
