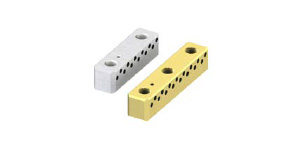

Guide Center Rail with Tapped Holes
Guide Center Rail with Tapped Holes component for plastic injection mold.
Models:
25CKBF (Cast Iron FC250 + Oil Free)
25CKBI (Steel S50C + Hardened + Oil Free)
25CKBW (Copper Alloy + Oil Free)
more
- Model 25CKBF/25CKBI/25CKBW
- Manufacturer Code CKBF/CKBI/CKBW/CGBF/CGBS/CGBW
View Online
Download
Swipe

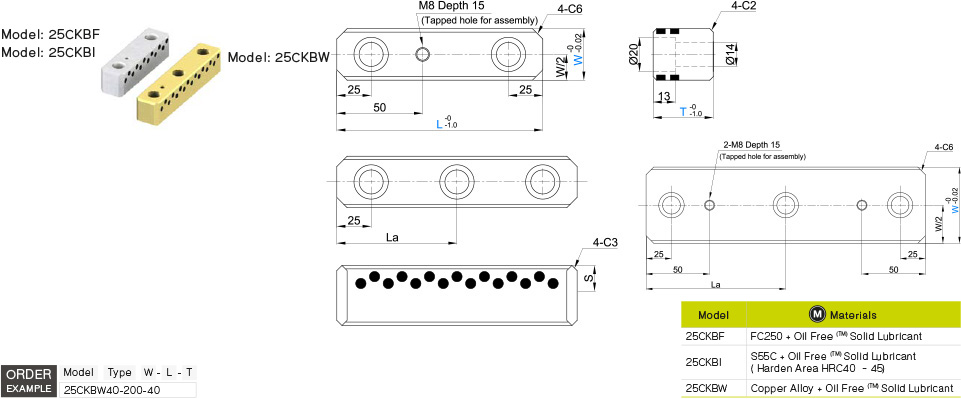

| Model | Type | W | L | T | La | S |
| 25CKB | F (Cast Iron +Oilfree) I (Steel +Oilfree) W (Copper Alloy +Oilfree) |
30 | 100 | 30 | - | 15 |
| 150 | - | |||||
| 200 | 100 | |||||
| 250 | 125 | |||||
| 300 | 150 | |||||
| 350 | 175 | |||||
| 40 | 100 | 30 | - | |||
| 150 | - | |||||
| 200 | 100 | |||||
| 250 | 125 | |||||
| 300 | 150 | |||||
| 350 | 175 | |||||
| 100 | 40 | - | 20 | |||
| 150 | - | |||||
| 200 | 100 | |||||
| 250 | 125 | |||||
| 300 | 150 | |||||
| 350 | 175 | |||||
| 60 | 100 | 40 | - | 25 | ||
| 250 | 125 | |||||
| 300 | 150 | |||||
| 350 | 175 |
