Universal Tilting Rotary Table
Universal Tilting Rotary Table unit is suitable for quick manual indexing with very rigid body can be use on milling and drilling machine. The tilt range is 90 degrees from horizontal to vertical position. One rotation of the handle will the the table 3 degrees and 5 minutes.
more
View Online
Download
Swipe

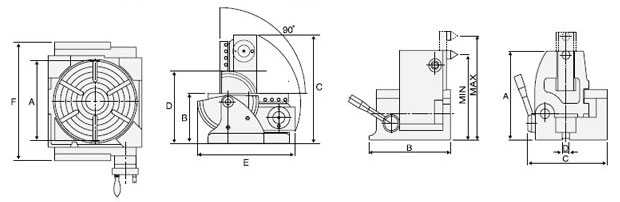

| Order Code | Table Diameter (A) |
Table Height Horizontal (B) |
Table Height Vertical (C) |
Center Height Vertical (D) |
E | F | Gear Ratio | Center Hole | Direct Indexing |
Weight (kg) |
| 02VUT-12 | Ø300 | 185 | 370 | 208 | 336 | 444 | 90:1 | MT4 | 24-div | 99.5 |
