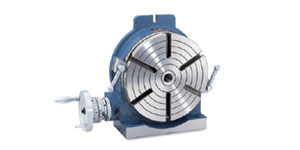

Horizontal-Vertical Rotary Table
Horizontal-Vertical Rotary Table can be use in horizontal or vertical position. One turn of handle will move the table 4 degree.
more
View Online
Download
Swipe

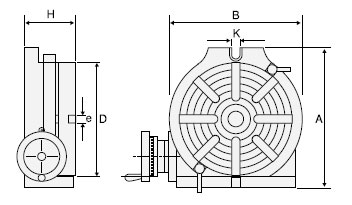

| Order Code | Table | Base Dimension | Bolt Slots | Center Sleeve | Worm Gear Ratio | Weight (kg) | ||
| D | H | A | B | K | ||||
| 02HHV-150 | 150 | 92 | 220 | 160 | 18 | MT-2 | 90 : 1 | 12.5 |
| 02HHV-350 | 350 | 140 | 460 | 380 | MT-4 | 98 | ||
