Slide Core Guide Parts (Adjustable Type)

Oil Free standard slide core for Injection Mold.
Slide Core Guide Parts (Adjustable Type)

Model: 25SAP
For fixed type slide cores: 25SAA and 25SCA

more
  • Model 25SAP
  • Manufacturer Code SAP/AP
Brand
OIL FREE
OIL FREE
  • Type

    Adjustable

  • Parts

    Insert

  • Series

    New Serie

Swipe

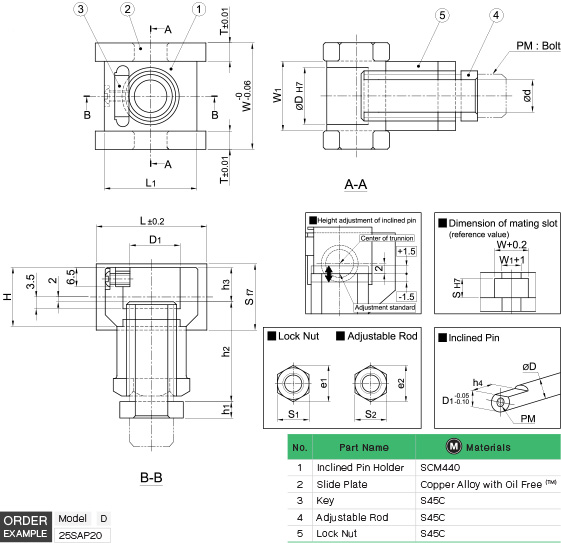

Slide Core Guide Parts (Adjustable Type) drawing
Model D W W1 T L L1 S f7 H h1 h2
0 ~ 10° 11 ~ 15° 16 ~ 20°
25SAP 12 30 17 6.5 35 25 20 -0.020
-0.041		 16 6 33 38 43
16 33 20 40 29 18 43 48
20 38 25 34 24 22 36 46 51
25 45 31 7 45 38 26 26 39 39 39
30 51 36 7.5 55 43 30 30 41 41 41
35 60 42 9 70 48 34 -0.025
-0.050		 36 50 50 50
40 67 47 10 80 53 38 40 52 52 52
Swipe
Model D h3 S1 e1 S2 e2 D1 d d1 Notch of inclined Pin
h4 PM
25SAP 12 10 17 19.6 12 13.8 11 5.5 - 13 M5
16 11 21 24.2 16 18.5 15 9 16 14 M8
20 13 24 27.7 19 21.9 18 11 20 16 M10
25 15 22 18
30 17 27.5 20
35 20 27 31.1 21 24.2 32.5 13 26 23 M12
40 22 37.5 25
