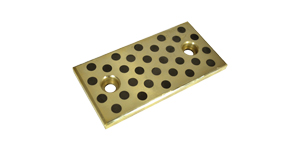

Copper Alloy Wear Plate (10mm)

Bronze Copper Alloy Wear Plate (10mm)
Slide components Oil Free for press die, usable without the need to reapply oil. 10mm models come with its own special bolts.

Model: 25STWW, 25STWWD Copper Alloy + Oil Free Solid Lubricant
*Adding oil grooves can be order as optional

more
  • Model 25STWW/25STWWD
  • Manufacturer Code STWW/STWWD/STW/TWP/STWT/TWPT
Brand
OIL FREE
OIL FREE
  • Base Material

    Copper Alloy

  • Height (mm)

    10

Swipe

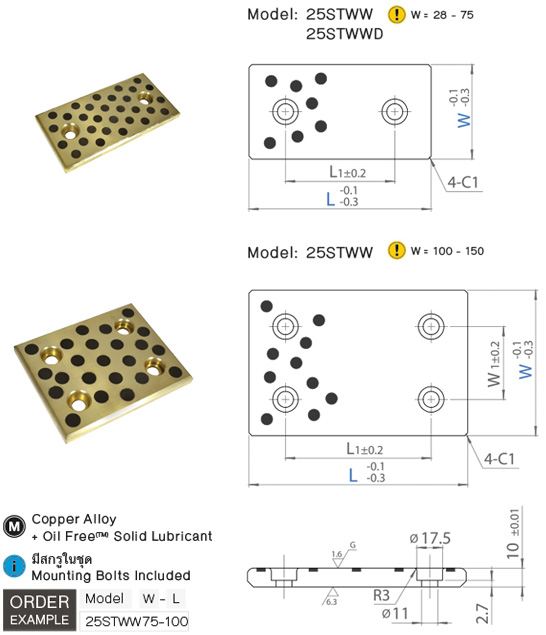

Copper Alloy Wear Plate (10mm) drawing
Model W L L1 W1
25STWW 28 75 45 -
100 50
125 75
150 100
38 75 45 -
100 50
125 75
150 100
48 75 45 -
100 50
125 75
150 100
200 150
58 75 45 -
100 50
150 100
75 75 25 -
100 50
125 75
150 100
200 150
25STWW
25STWWD
100 100 50 50
125 75
150 100
200 150
250 200
125 150 100 50
200 150
250 200
150 150 100 100
200 150
