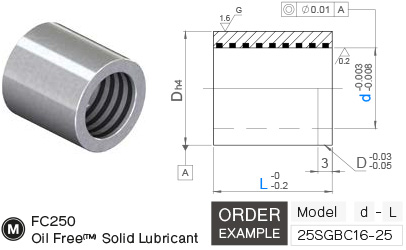

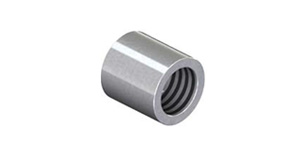

Oil Free Guide Stripper Bush (Adhesive)
Stripper Guide Bush standard for metal stamping die with solid lubricant Oil Free.
Fitting with adhesive Loctite No.638
FC250
Oil Free Solid Lubricant
Model: 25SGBC
more
- Model 25SGBC
- Manufacturer Code SGBC/SGBZ
View Online
Download
Swipe
| Model | d | L | D h4 | ||||||||
| 25SGBC | 8 | 10 | 13 | 16 | 20 | 13 | 0 -0.005 |
||||
| 10 | 10 | 13 | 16 | 20 | 22 | 25 | 16 | ||||
| 13 | 13 | 16 | 20 | 22 | 25 | 30 | 20 | 0 -0.006 |
|||
| 16 | 13 | 16 | 20 | 22 | 25 | 30 | 35 | 24 | |||
| 20 | 16 | 20 | 22 | 25 | 30 | 35 | 28 | ||||
| 25 | 20 | 22 | 25 | 30 | 35 | 34 | 0 -0.007 |
||||
