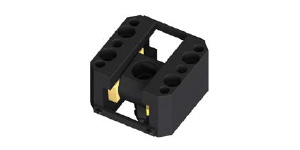

Slide Unit for Loose Core (Adjusting Type)

Oil Free standard slide core for Injection Mold.
Slide Unit for Loose Core (Adjusting Type)

Model: 25SOCU-M

more
  • Model 25SOCU-M
  • Manufacturer Code SOCU-M/KOCU-M
Brand
OIL FREE
OIL FREE
  • Type

    Adjustable

  • Parts

    Set

  • Series

    Old Serie

Swipe
Slide Unit for Loose Core (Adjusting Type) drawing
Model D Ө
1° increment		 W Wa L La K Ma Wb C d d1 t h
25SOCU-M 16 0 ~ 10 64 50 70 25 50 M8 36 6 6.6 11 6.5 20
20 76 60 75 30 55 M10 43 8 8.6 14 8.5 25
25 81 65 85 40 65 M10 48 8 8.6 14 8.5 25
30 88 72 100 50 80 M10 55 8 8.6 14 8.5 25
35 100 80 115 50 85 M12 64 8 11 *18 6.5 30
40 108 88 125 50 85 M12 72 8 11 *18 7 30
Swipe
Model D Ө
1° increment		 M e E H T G F A a g Ta
25SOCU-M 16 0 ~ 10 M8 6 6.6 40 24 24 45 30 13 10 15
20 M10 8 9 46 30 24 45 40 17 13 18
25 M10 8 9 48 35 26 50 45 22 14 20.5
30 M10 8 9 54 38 30 60 50 27 15 22
35 M12 10 11 60 40 34 70 55 31 15 23
40 M12 10 11 65 43 38 80 60 36 16 24.5
Swipe
