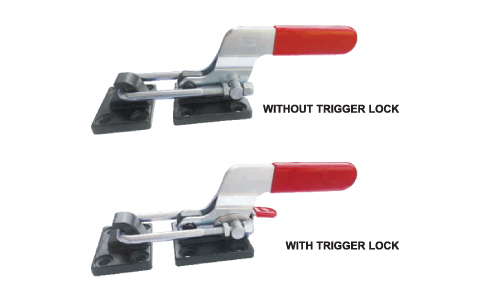

Heavy-Duty Horizontal Latch Clamp

Horizontal pull-action latch type toggle clamp for heavy duty works.

Model: 11PAC

more
  • Model 11PAC
  • Manufacturer Code PAC
Brand
Toolfast
Toolfast
  • Clamp Style

    Pull-Action

  • Body Material

    Steel

Swipe

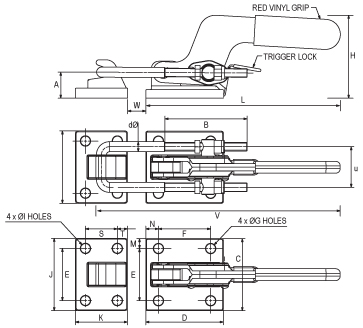

Heavy-Duty Horizontal Latch Clamp drawing
Order
Code		 A dØ U V B
THREAD LENGTH		 W MOUNTING BASE OF CLAMP MOUNTING BASE
OF LATCH PLATE		 H L HOLDING CAPACITY N. W.
Kgs.
Min. Max. C D E F M N GØ J K S T IØ
11PAC-10-H
Without Trigger
Lock		 28.5 9.5Ø 44.5 144 90 5 25 79 85 57.2 57.2 10.9 13.9 10.5Ø 79 57 35 11 10.5Ø 91 213 2000 Kgs. 1.80
11PAC-10-H-TR
With Trigger Lock		 28.5 9.5Ø 44.5 144 90 5 25 79 85 57.2 57.2 10.9 13.9 10.5Ø 79 57 35 11 10.5Ø 91 213 2000 Kgs. 1.80
11PAC-11-H
Without Trigger
Lock		 28.5 11Ø 44.5 144 90 5 45 79 85 57.2 57.2 10.9 13.9 10.5Ø 79 57 35 11 10.5Ø 91 213 3000 Kgs. 2.10
11PAC-11-H-TR
With Trigger Lock		 28.5 11Ø 44.5 144 90 5 45 79 85 57.2 57.2 10.9 13.9 10.5Ø 79 57 35 11 10.5Ø 91 213 3000 Kgs. 2.10
