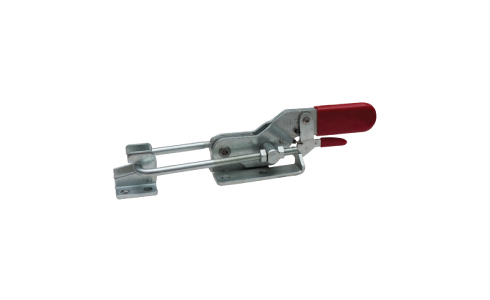

Horizontal Pull-Action Toggle Clamp (Trigger Lock)

Horizontal Pull-Action Toggle Clamp (Trigger Lock) lockable latch clamp.

Model: 11PAC

more
  • Model 11PAC
  • Manufacturer Code PAC
Brand
Toolfast
Toolfast
  • Clamp Style

    Pull-Action

  • Body Material

    Steel

Swipe
Horizontal Pull-Action Toggle Clamp (Trigger Lock) drawing
Order
Code		 A dØ U V B
THREAD LENGTH		 W MOUNTING BASE OF CLAMP MOUNTING BASE
OF LATCH PLATE		 H L HOLDING CAPACITY N. W.
Kgs.
Min. Max. C D E F M N GØ J K S T IØ
11PAC-625-H-TR 17 6 34 128 68 5 55 45 76 28 25 8.5 7.5 6.5Ø 23 36 18 9 6.5 54 156 400 Kgs. 0.43
11PAC-840-H-TR 26 8 48 165 87 5 66 60 94 40 40 10 10 8.5Ø 60 46 22 8.5 8.5 66 185 900 Kgs. 0.92
