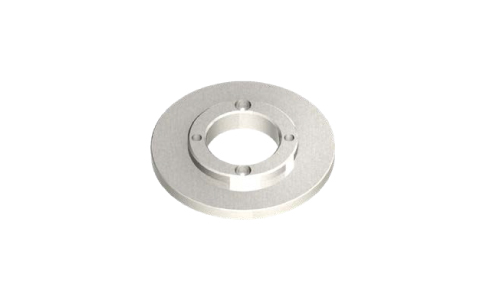

Locating Ring
S45C Locating Ring for injection mold.
Models:
21LRBW
more
- Model 21LRBW
- Manufacturer Code LRBW
View Online
Download
Swipe

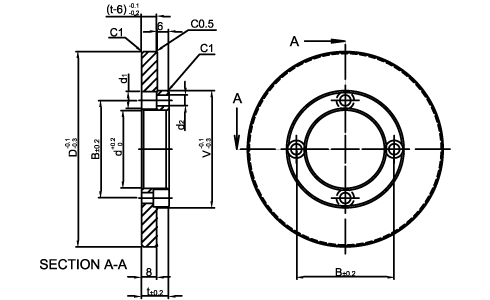

| Model | D | t | d | B | V | Applicable Bolts |
Bolt hole | |
| d2 | d1 | |||||||
| 21LRBW | 100 | 14 | 40 | 50 | 60 | M5 | 5.5 | 9 |
| 16 | ||||||||
| 120 | 14 | 70 | 85 | 100 | M6 | 6.5 | 11 | |
| 16 | ||||||||
| 130 | 14 | |||||||
| 16 | ||||||||
