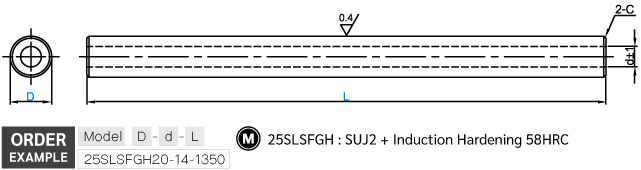

Linear Pipe Shaft
Precision Linear Pipe Shaft, choose overall length L with 1mm increment.
25SLSFGH : straight shaft SUJ2 Induction Hardening 58HRC
How to Order: Model+D - d - L
Example: 25SLSFGH20-14-1350
*Customize specification available, please contact our sales
more
- Model 25SLSFGH
Swipe
| Model | Tolerance | Material | Surface |
| 25SLSFGH | g6 | SUJ2 | Induction Hardening 58HRC |
Swipe
| Model | D | L (1mm increment) | d | C |
| 25SLSFGH | ||||
| 25SLSFGH | 6 | 20-500 | 2 | 0.5 |
| 8 | 20-500 | 3 | ||
| 10 | 20-600 | 4 | ||
| 12 | 20-1000 | 6 | ||
| 13 | 25-1000 | 7 | ||
| 16 | 30-2000 | 8 | ||
| 20 | 30-2000 | 10 | 1 | |
| 20 | 30-2000 | 14 | ||
| 25 | 35-3000 | 15 | ||
| 30 | 35-3000 | 16 | ||
| 35 | 35-3000 | 19 | ||
| 40 | 50-3000 | 20 | ||
| 50 | 65-3000 | 26 |
