Linear Shaft, Both End Stepped

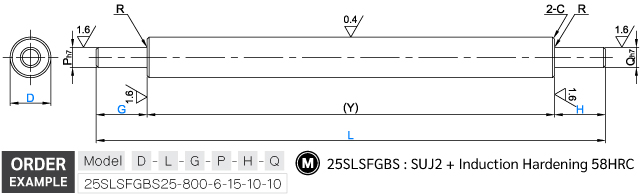

Precision Linear Shaft with both ends stepped to smaller diameter. Choose overall length L with 1mm increment.
25SLSFGBS : straight shaft SUJ2 Induction Hardening 58HRC
How to Order: Model+D - L - G - P - H - Q
Example: 25SLSFGBS25-800-6-15-10-10
*Customize specification available, please contact our sales
more
- Model 25SLSFGBS
Swipe
| Model | Tolerance | Material | Surface |
| 25SLSFGBS | g6 | SUJ2 | Induction Hardening 58HRC |
Swipe
| Model | D | L (1mm increment) | G | H | P | Q | Y (Minimum) |
R | C |
| 25SLSFGBS | 1mm increment | ||||||||
| 25SLSFGBS | 6 | 24-600 | 2 ≤ G ≤ Px5 | 2 ≤ H ≤ Qx5 | 3 ≤ P < D | 3 ≤ Q < D | 20 | 0.3 | 0.5 |
| 8 | 24-800 | ||||||||
| 10 | 24-800 | ||||||||
| 12 | 24-1000 | 5 ≤ P < D | 5 ≤ Q < D | ||||||
| 13 | 24-1000 | ||||||||
| 15 | 24-1000 | ||||||||
| 16 | 24-1200 | ||||||||
| 20 | 29-1200 | 25 | 1 | ||||||
| 25 | 29-1200 | 10 ≤ P < D | 10 ≤ Q < D | ||||||
| 30 | 34-1500 | 30 | |||||||
| 35 | 39-1500 | 16 ≤ P < D | 16 ≤ Q < D | 35 | 0.5 | ||||
| 40 | 44-1500 | 40 | |||||||
| 50 | 74-1500 | 70 | |||||||
