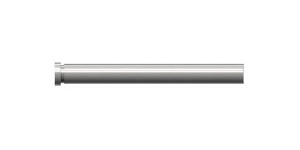

Return Pins for Large Mold (Tapped Type)
Return Pins for Large Mold (Tapped Type) standard component for plastic injection mold.
Models: 25RT8TSM
more
- Model 25RT8TSM
- Manufacturer Code RT8TSM
View Online
Download
Swipe
_Drawing.jpg "Return Pins for Large Mold (Tapped Type) drawing")
| Model | D | L 1mm increments |
H | M | L1 |
| 25RP8TSM | 25 | 100 ~ 700 | 30 | 8 | 15 |
| 30 | 100 ~ 800 | 35 | 10 | 20 | |
| 32 | 100 ~ 800 | 37 | |||
| 40 | 100 ~ 800 | 45 |
