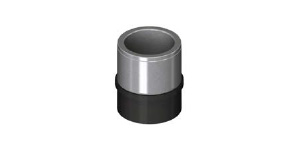

Ejector Leader Bush for Ball Retainer
Ejector Leader Bush for Ball Retainer standard bushing for plastic injection mold
Model: 25EGBB
Can be use to assembly Ball Guide
more
- Model 25EGBB
- Manufacturer Code EGBB
View Online
Download
Swipe
| Model | No. | L | D1 | D h6 | d | |||||
| 25EGBB | 8 | 13 | 15 | 19 | 16 | -0.000 -0.011 |
12 | -0.025 -0.030 |
||
| 10 | 13 | 15 | 21 | 18 | 14 | |||||
| 13 | 13 | 15 | 20 | 25 | 25 | 22 | -0.000 -0.013 |
17 | -0.030 -0.035 |
|
| 16 | 13 | 15 | 20 | 25 | 28 | 25 | 20 | |||
| 20 | 13 | 15 | 20 | 25 | 33 | 30 | 24 | -0.035 -0.040 |
||
| 25 | 13 | 15 | 20 | 25 | 38 | 35 | -0.000 -0.016 |
29 | ||
| 30 | 13 | 15 | 20 | 25 | 43 | 40 | 34 | |||
