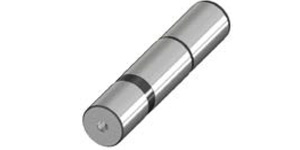

Leader Pin for Large Mold
S45C 58HRC~ (induction hardened)
Leader Pin for Large Mold for plastic injection mold
Models:
25GPXL (D = h6)
25GPPL (D = ±0.015)
more
- Model 25GPXL/25GPPL
- Manufacturer Code GPXL/GPPL
View Online
Download
Swipe
| Model | D | D Tolerance | L | N | B | A | D1 | D1 Tolerance | ||
| 25GPXL (h6) | 25GPPL | 5mm increments | 1mm increments | 25GPXL (f6) |
25GPPL (e7) |
|||||
| 25GPXL 25GPPL |
40 | 0 -0.016 |
±0.015 | 100 ~ 360 | 0 or 5 ~ 140 | 0 or 5 ~ 200 | 10 | 40 | -0.025 -0.041 |
-0.050 -0.075 |
| 50 | 100 ~ 400 | 0 or 5 ~ 200 | 50 | -0.060 -0.090 |
||||||
| 60 | 0 -0.019 |
150 ~ 500 | 20 | 60 | -0.030 -0.049 |
|||||
| 80 | 150 ~ 400 | 80 | ||||||||
