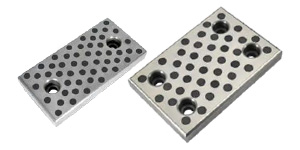

Steel Wear Plate (20mm)
Oil Free Steel Wear Plate (20mm thickness)
Slide components Oil Free for mold, usable without the need to reapply oil.
Models: 25SWI : S45C + Oil Free(TM) Solid Lubricant
*Adding oil grooves can be order as optional
more
- Model 25SWI
- Manufacturer Code SWI/FRP
View Online
Download
Swipe
_Drawing.jpg "Steel Wear Plate (20mm) drawing")
| Model | W | L | L1 | W1 |
| 25SWI | 48 | 75 | 45 | - |
| 100 | 50 | |||
| 125 | 75 | |||
| 150 | 100 | |||
| 200 | 150 | |||
| 75 | 75 | 25 | - | |
| 100 | 50 | |||
| 125 | 75 | |||
| 150 | 100 | |||
| 200 | 150 | |||
| 100 | 100 | 50 | 50 | |
| 125 | 75 | |||
| 150 | 100 | |||
| 200 | 150 | |||
| 250 | 200 | |||
| 125 | 125 | 75 | 50 | |
| 150 | 100 | |||
| 200 | 150 | |||
| 250 | 200 | |||
| 150 | 150 | 100 | 100 | |
| 200 | 150 | |||
| 250 | 200 |
