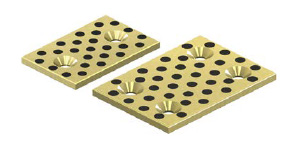

Copper Alloy Wear Plate (5mm)
Bronze Copper Alloy Wear Plate (5mm thickness)
Slide components Oil Free for mold, usable without the need to reapply oil.
Model: 25UTWW Copper Alloy + Oil Free(TM) Solid Lubricant
*Adding oil grooves can be order as optional
more
- Model 25UTWW
- Manufacturer Code UTWW
View Online
Download
Swipe
_Drawing.jpg "Copper Alloy Wear Plate (5mm) drawing")
| Model | W | L | L1 | W1 | d | h | Mounting Bolts |
| 25UTWW | 18 | 50 | 20 | - | 6.5 | 1.5 | M6 |
| 75 | 45 | ||||||
| 100 | 70 | ||||||
| 150 | 60 | ||||||
| 28 | 50 | 20 | - | 10 | 0.8 | M8 | |
| 75 | 45 | ||||||
| 100 | 70 | ||||||
| 150 | 60 | ||||||
| 38 | 50 | 20 | - | 10 | 0.8 | M8 | |
| 75 | 45 | ||||||
| 100 | 70 | ||||||
| 150 | 60 | ||||||
| 48 | 75 | 45 | - | 10 | 0.8 | M8 | |
| 100 | 70 | ||||||
| 125 | 95 | ||||||
| 150 | 60 | ||||||
| 75 | 75 | 45 | 45 | 10 | 0.8 | M8 | |
| 100 | 70 | ||||||
| 125 | 95 | ||||||
| 150 | 60 | ||||||
| 100 | 100 | 70 | 70 | 10 | 0.8 | M8 | |
| 125 | 95 | ||||||
| 150 | 60 |
