Copper Alloy Wear Plate (20mm)

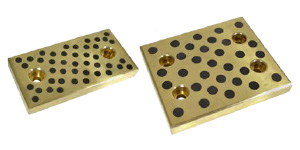

Bronze Copper Alloy Wear Plate (20mm) bronze sliding plate Oil Free for mold.

Slide components Oil Free for mold, usable without the need to reapply oil.
Model: 25SWW, 25SWWD Copper Alloy + Oil Free(TM) Solid Lubricant
*Adding oil grooves can be order as optional

more
  • Model 25SWW/25SWWD
  • Manufacturer Code SWW/SWWD/SESW/SESWT
Brand
OIL FREE
OIL FREE
  • Type

    Slide Plate

Swipe
Copper Alloy Wear Plate (20mm) drawing
Model W L L1 W1
25SWW 28 75 45 -
100 50
150 100
38 75 45 -
100 50
150 100
48 75 45 -
100 50
125 75
150 100
200 150
58 75 45 -
100 50
150 100
75 75 25 -
100 50
125 75
150 100
200 150
25SWW 25SWWD 100 100 50 50
125 75
150 100
200 150
250 200
300 200
125 125 75 50
150 100
200 150
250 200
300 200
350 200
150 150 100 100
200 150
250 200
