Compact Cascade

Compact brass water cascade for plastic injection mold.
Model: 21CACC

more
  • Model 21CACC
  • Manufacturer Code CACC
Brand
OIL FREE
OIL FREE
  • Type

    Cascade

Swipe

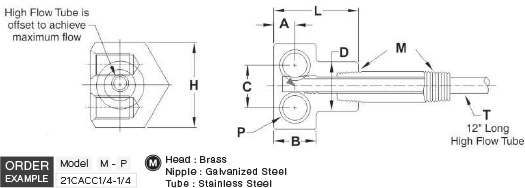

Compact Cascade drawing
Model M
(NPT)
P
(NPT)
C
(Inch)
T
(Inch)
H
(Inch)
A
(Inch)
B
(Inch)
L
(Inch)
D
(Inch)
21CACC 1/8 1/16 0.50 0.187 0.93 0.21 0.437 1.00 0.625
1/4 1/8 0.68 0.250 1.25 0.31 0.625 1.25 0.750
1/4 0.75 0.250 1.50 0.37 0.750 1.50 0.875
3/8 1/4 0.75 0.312 1.50 0.37 0.750 1.50 1.000
