Spring Unit for Cam Return (40mm)

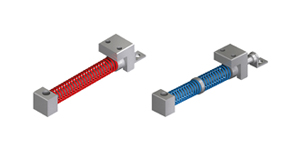

Spring Unit for Cam Return (Spring 40mm) standard component for stamping die.
Long stroke types will use two springs.
Blue Spring 25SUL40
Red Spring 25SUM40

more
  • Model 25SUL/25SUM
  • Manufacturer Code SUL/SUM/SHUL/SHUM
Brand
OIL FREE
OIL FREE
  • Type

    Spring Unit

  • Material

    Steel

Swipe

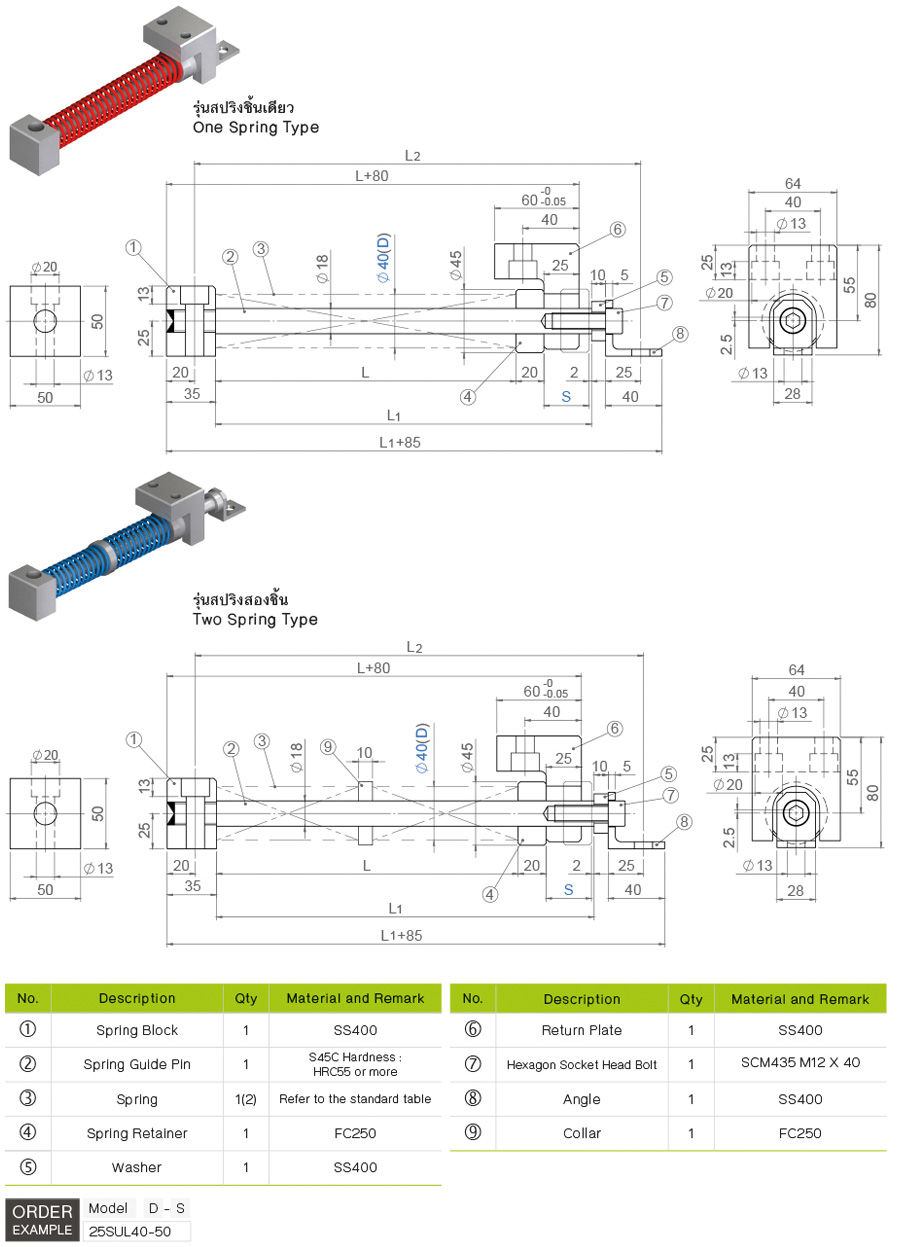

Spring Unit for Cam Return (40mm) drawing
Model D Stroke
S		 Spring
Size (DiaxLenght)		 Spring
No.		 Spring
Color		 Load (N) L L1 L2
min max
25SUL 40 20 40x100 1 Blue 635 1695 68 110 160
25 40x125 632 85 132 182
30 40x150 635 102 154 204
35 40x150 459 102 159 209
40 40x175 485 119 181 231
45 40x200 503 136 203 253
50 40x250 647 170 242 292
55 40x250 539 170 247 297
60 40x150 2 627 214 296 346
65 40x150 547 214 301 351
70 40x175 633 248 340 390
75 40x175 562 248 345 395
80 40x200 635 282 384 434
85 40x200 568 282 389 439
90 40x200 503 282 394 444
95 40x200 436 282 399 449
100 40x250 647 350 472 522
105 40x250 593 350 477 527
110 40x250 539 350 482 532
25SUM 40 20 40x125 1 Red 940 2510 93 135 185
25 40x150 914 111 158 208
30 40x200 1027 149 201 251
35 40x225 957 168 225 275
40 40x250 938 186 248 298
45 40x300 1012 224 291 341
50 40x175 2 1119 270 342 392
55 40x175 979 270 347 397
60 40x200 1027 308 390 440
65 40x200 905 308 395 445
70 40x225 1001 344 436 486
75 40x250 1039 382 479 529
80 40x250 941 382 484 534
