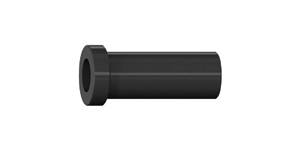

Spool Retainer Collars
Spool Retainer Collars standard component for metal stamping die, for use with Spool Retainer.
Model : 25SCSRE
more
- Model 25SCSRE
- Manufacturer Code SCSRE/CSRE
View Online
Download
Swipe
| Model | d | L 10mm increment |
S 5mm increment |
H | T | A | D | R | Use with 25CSR D |
| 25SCSRE | 10 | 50 – 100 | 10 – 25 | 36 | 5 | 16 | 28 | 1 | 10 |
| 13 | 40 | 5 | 19 | 30 | 13 | ||||
| 16 | 46 | 8 | 25 | 36 | 16 | ||||
| 20 | 55 | 10 | 29 | 44 | 20 | ||||
| 25 | 60 – 100 | 10 – 25 | 60 | 13 | 37 | 50 | 1 | 25 | |
| 32 | 70 | 16 | 46 | 60 | 1.5 | 32 |
