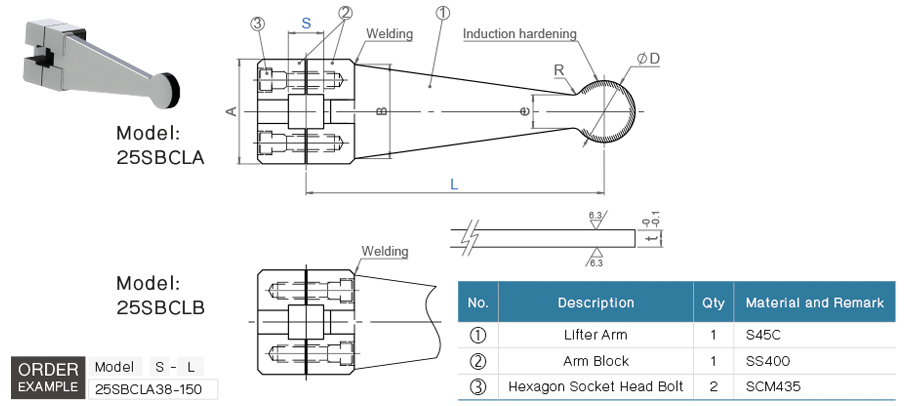

Bell Crank Lifter Parts (Lifter Arm)
Bell Crank Lifter Parts (Lifter Arm) standard bell crank component for die transferring.
Model: 25SBCLA, 25SBCLB
more
- Model 25SBCLA/25SBCLB
- Manufacturer Code SBCLA/SBCLB/SBLASA/SBLASB
View Online
Download
Swipe
| Model | S | L 10mm increments |
A | B | D | e | R | t |
| 25SBCLA 25SBCLB |
28 | 100 ~ 300 | 75 | 60 | 40 | 25 | 10 | 15 |
| 38 | 100 ~ 400 | 90 | 80 | 50 | 30 | 20 | 20 | |
| 50 | 100 ~ 600 | 110 | 100 | 50 | 30 | 20 | 20 |
